Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:
  • Check the following before installing the gear actuator assembly.
    1. Check that the gear actuator is placed in the "neutral" state.

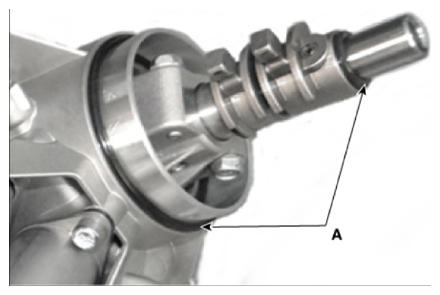

    2. Check the assembled state of the O-rings (A).
      G13349164Courtesy of KIA MOTORS AMERICA, INC.
    3. Apply gear oil to the surface of O-rings.

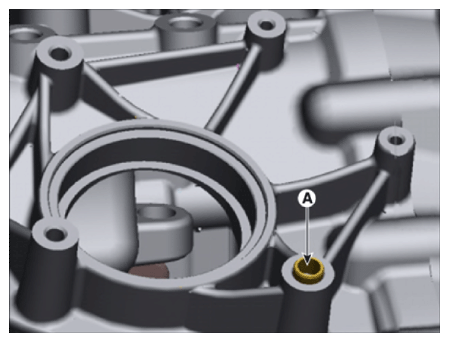

    4. Check the assembled state of the dowel pins (A).
    G13349165Courtesy of KIA MOTORS AMERICA, INC.

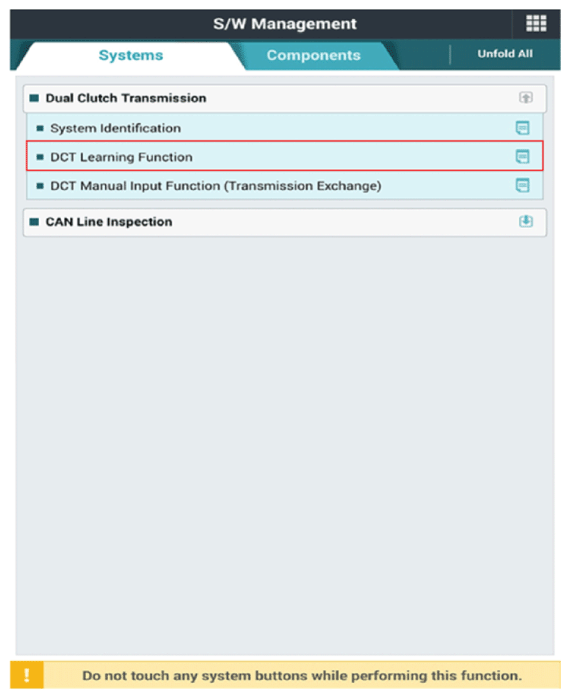

  • Perform the clutch touch point learning procedure using the KDS after replacing the gear actuator assembly.
G13349166Courtesy of KIA MOTORS AMERICA, INC.
