Components & Components Location: Components

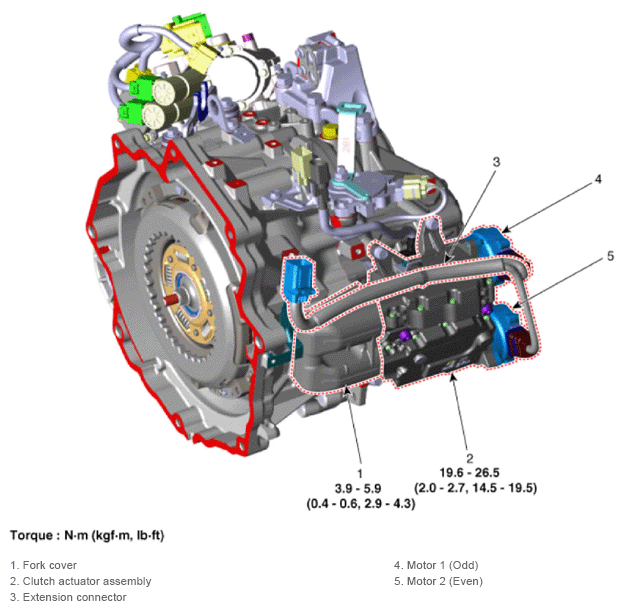

Fig 1: Clutch Actuator Assembly Components With Torque Specification

G13349119

Courtesy of KIA MOTORS AMERICA, INC.
