Repair Procedures: Disassembly

  1. Disconnect the negative battery cable.
  2. Remove the steering wheel assembly. Refer to: "Removal And Installation "

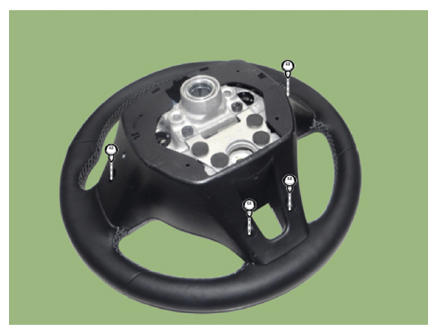

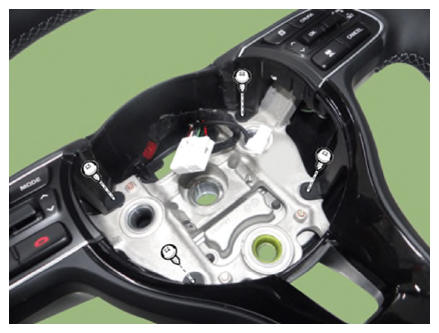

  3. Loosen the screw and then remove the steering back cover.
    G13349650Courtesy of KIA MOTORS AMERICA, INC.
    G13349651Courtesy of KIA MOTORS AMERICA, INC.

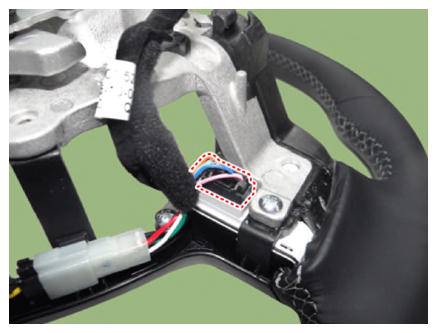

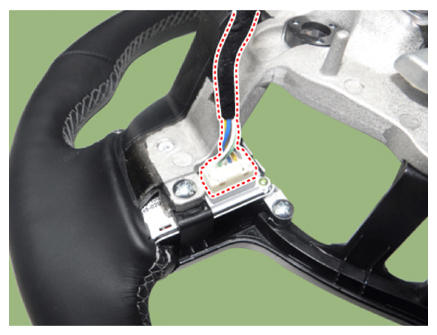

  4. Disconnect the remote control switch connector.
    G13349652Courtesy of KIA MOTORS AMERICA, INC.
    G13349653Courtesy of KIA MOTORS AMERICA, INC.

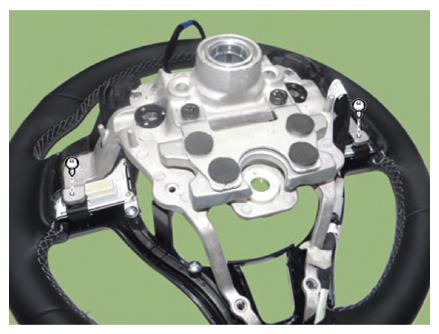

  5. Loosen the screw and then remove the remote control switch.
    G13349654Courtesy of KIA MOTORS AMERICA, INC.

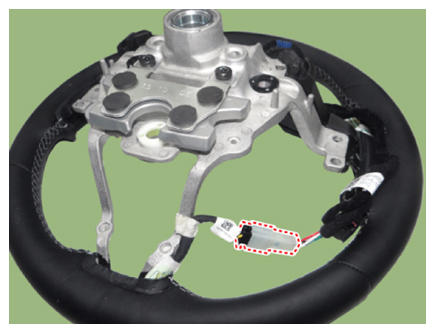

  6. Disconnect the heated pad connector.
    G13349655Courtesy of KIA MOTORS AMERICA, INC.

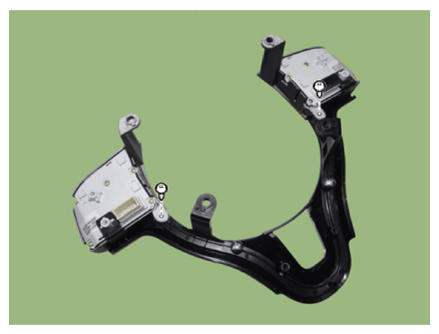

  7. Loosen the screw and then remove the remote control switch from the bezel.
    G13349656Courtesy of KIA MOTORS AMERICA, INC.
  8. Loosen the bolts and then remove the damper.
    G13349657Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
