Dust Cap

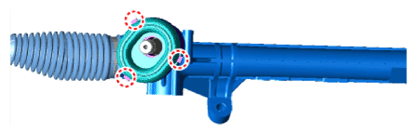

  1. Remove the dust cap cover.
    G13349645Courtesy of KIA MOTORS AMERICA, INC.

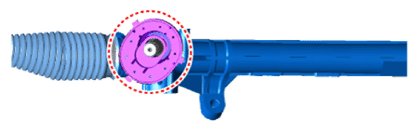

  2. Remove the dust cap.
    G13349646Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
