Removal And Installation

Disconnect the battery negative cable.

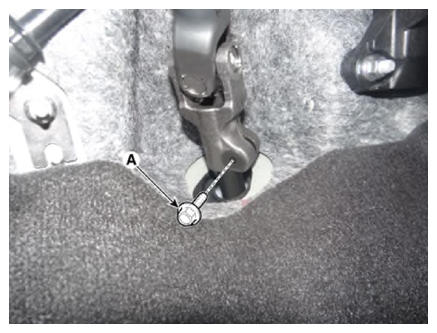

Remove the universal bolt (A).
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Keep neutral range to prevent damaging the clock spring inner cable when steering the wheel.
- Do not reuse the bolt.

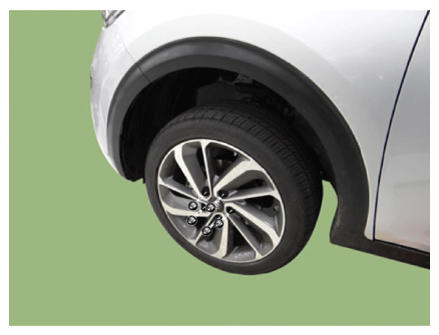

Remove the wheel and tire.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the wheel nuts when removing the wheel and tire.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

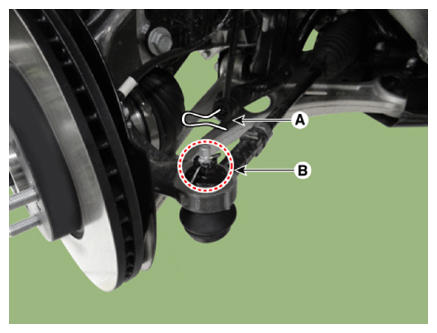

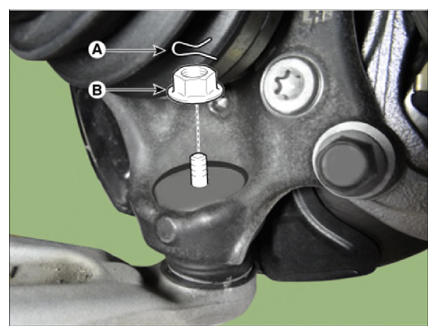

Remove the tie rod end pin (A) and nub (B).
Tightening torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

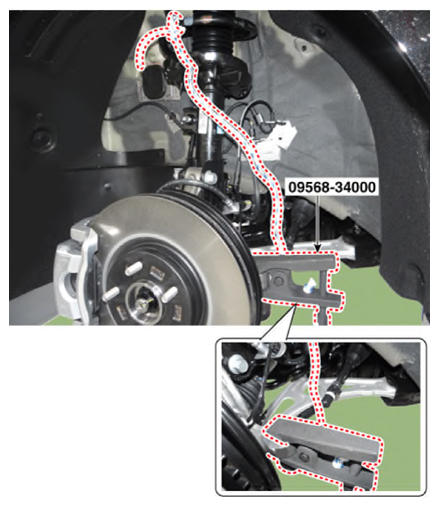

Remove the knuckle by using the SST (09568-34000).

Courtesy of KIA MOTORS AMERICA, INC.

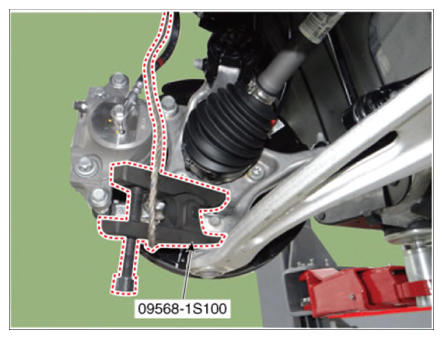

Disconnect the lower arm from the knuckle by using the SST (09568-1S100).

Remove the lower arm pin (A) and nut (B).

Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the lower arm from the knuckle by using the SST (09568-1S100).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When using SST, be sure not to damage the dust cover of lower arm ball joint.
Keep SST tied to the car because there is a risk of injury by dropping the SST during removing the lower arm ball joint.
The peripheral parts may be damaged when removing the lower arm ball joint with a general tool such as lever, so be sure to use SST.

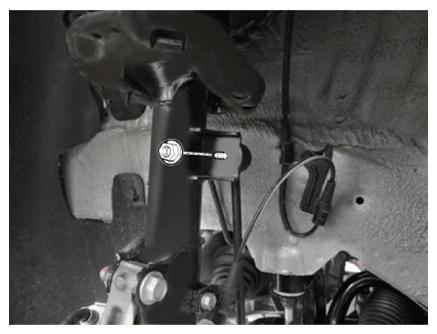

Remove the stabilizer link nut.
Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

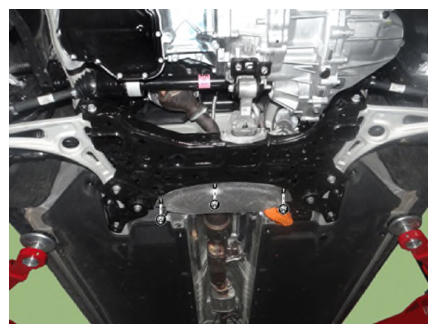

Loosen the nuts and then remove the heat protector.

Courtesy of KIA MOTORS AMERICA, INC.

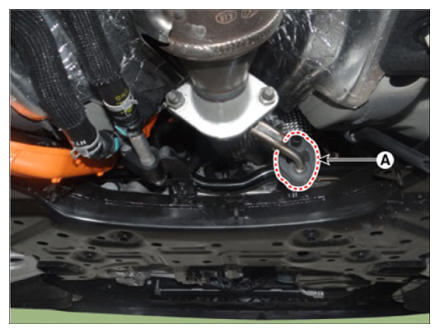

Remove the hanger (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

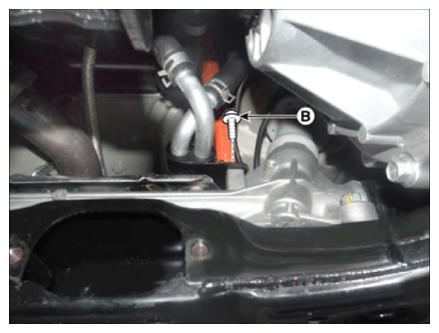

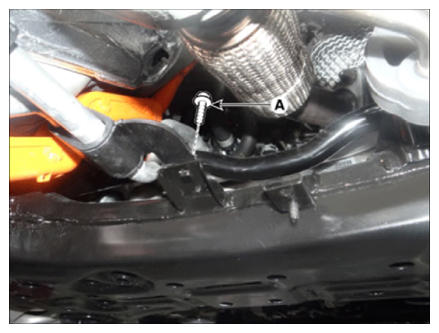

Loosen the bolts (A) and (B) and then remove the coolant pipe.
Tightening torque:

6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

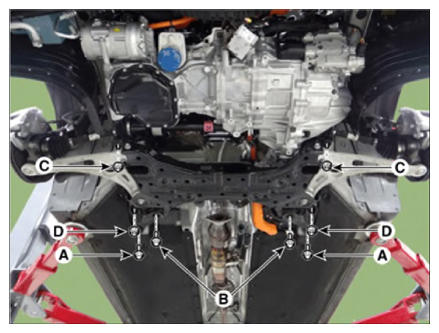

Loosen the bolts (A, B) and nuts (C, D) and then remove the sub frame.
Tightening torque:

Bolts:
1. 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)
2. 176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.6 lb-ft)
  Nuts:
3. 176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.6 lb-ft)
4. 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Set up the transmission jack under the subframe in order to remove the shock absorber in no-load condition.

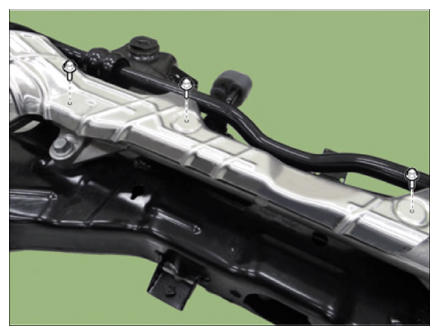

Loosen the bolts and then remove the gearbox heat protector.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts and then remove the front stabilizer bar.
Tightening torque:

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

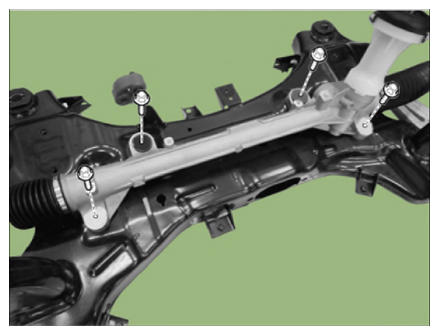

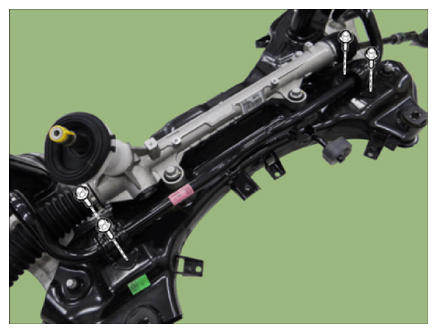

Loosen the bolts and then remove the gear box.
Tightening torque:

88.3 - 107.9 - 127.5 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel alignment.
(Refer to Suspension System - "ALIGNMENT ")
