Home >> Kia >> 2021 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid Control System (PHEV) >> HPCU (Hybrid Power Control Unit) >> Components And Components Location >> Components

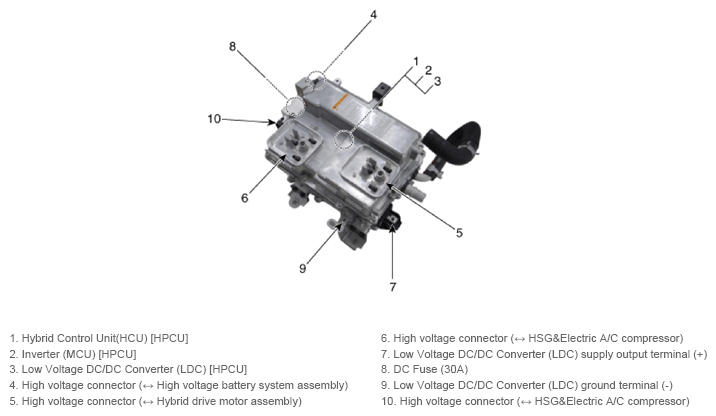

Components And Components Location: Components

G13352012

Courtesy of KIA MOTORS AMERICA, INC.
