Repair Procedures: Installation

NOTE:

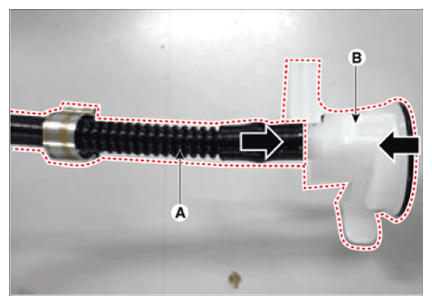

  1. Put the tube (A) into the assist pump (B).
    G13348898Courtesy of KIA MOTORS AMERICA, INC.

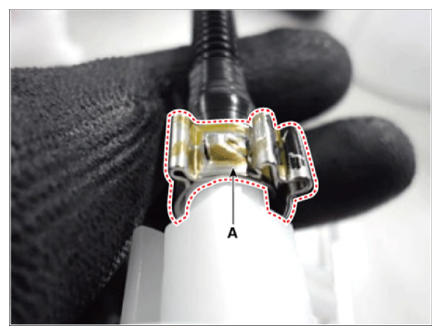

  2. Put the clip (A) on the joint.
    G13348899Courtesy of KIA MOTORS AMERICA, INC.

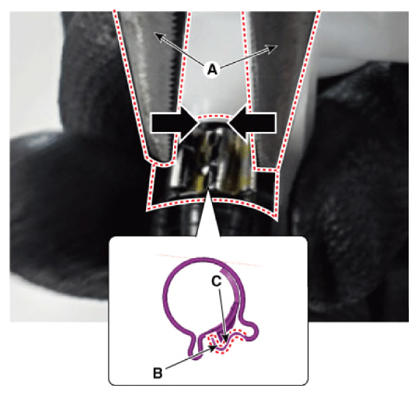

  3. Hook the clip (B, C) by using plier (A).
    G13348900Courtesy of KIA MOTORS AMERICA, INC.

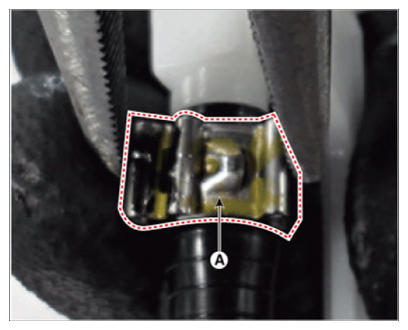

  4. Fix the clip (A).
G13348901Courtesy of KIA MOTORS AMERICA, INC.
