Electric EGR Control Valve

[Motor]

Item Specification
Coil Resistance (Ω) 2.21 - 2.99 [20°C(68°F)]
Pin 2

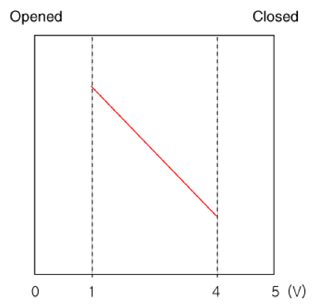

[Position sensor]

Item Specification
Sensor Power (V) 5
Pin 3
Closed Voltage (V) 3.85 - 4.15
Opened Voltage (V) 0.75 - 1.25
G13348685Courtesy of KIA MOTORS AMERICA, INC.
