Engine Coolant Temperature Sensor (ECTS) [EGR Cooler Tube]

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

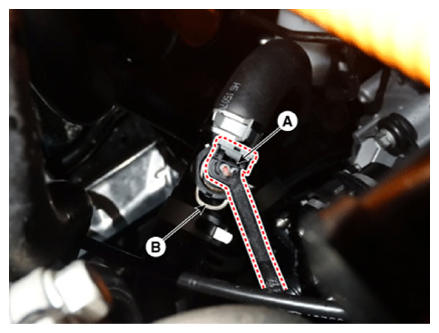

3. Disconnect the engine coolant temperature sensor connector (A).
4. Remove the spring clip (B), and then pull the sensor from the water temperature control assembly.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Note that engine coolant may flow out from the water temperature control assembly when removing the sensor.
