Repair Procedures: Installation

  1. Install in the reverse order of removal.

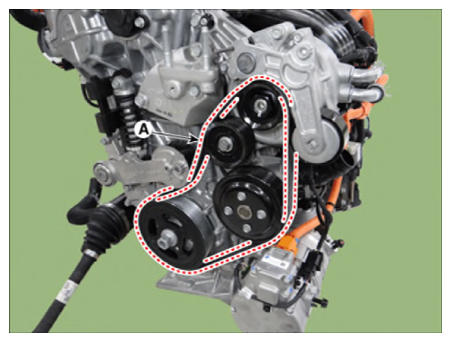

    1. Install the drive belt (A).
      Fig 1: Engine Drive Belt Routing Diagram
      G13348347Courtesy of KIA MOTORS AMERICA, INC.

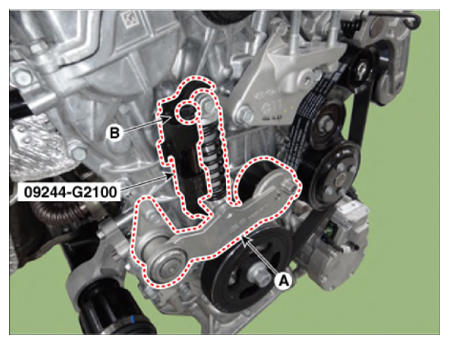

    2. Remove the SST (09244 - G2100) from the hydraulic tensioner (A) by loosening the adjusting bolt (B).
      G13348348Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: To prevent damage the hydraulic tensioner, carefully loosen belt using hydraulic tensioner tool.

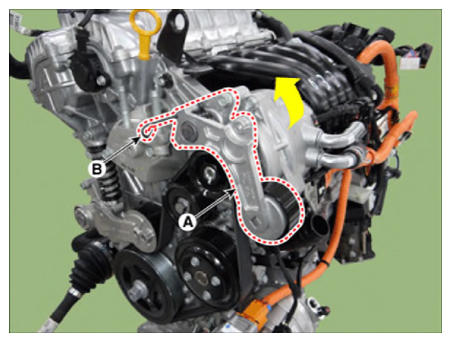

    3. Using the wrench, slightly lift the mechanical tensioner (A) and then remove the stopper pin (B). Slowly place the mechanical tensioner (A).
    G13348349Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
