Water Temperature Control Assembly

Disconnect the battery negative terminal.
Loosen the drain plug, and drain the engine coolant. Remove the reservoir cap to help drain the coolant faster.
(Refer to Cooling System - "Components ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

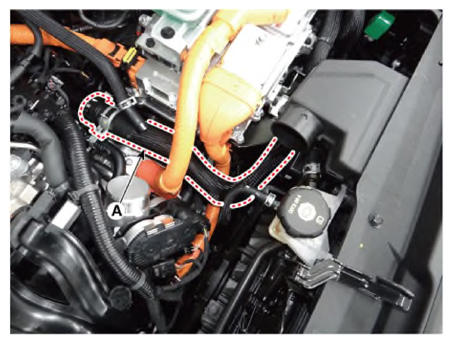

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

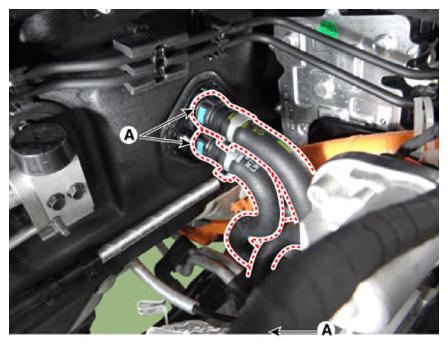

Disconnect the heater hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.

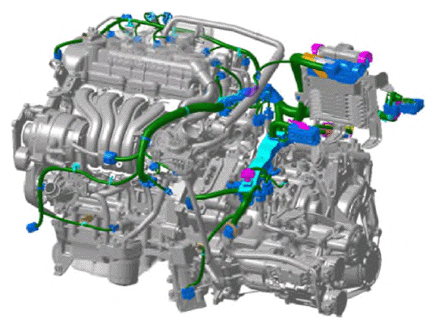

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the water temperature control assembly.

Courtesy of KIA MOTORS AMERICA, INC.

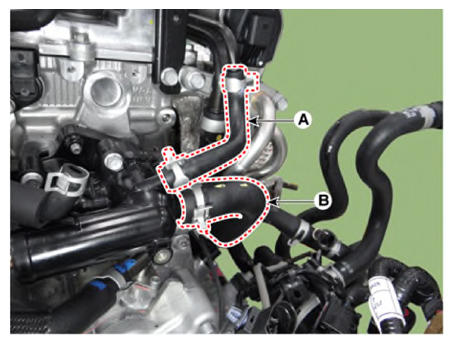

Disconnect the degassing hose (A) and EGR cooler hose (B).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the oil cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

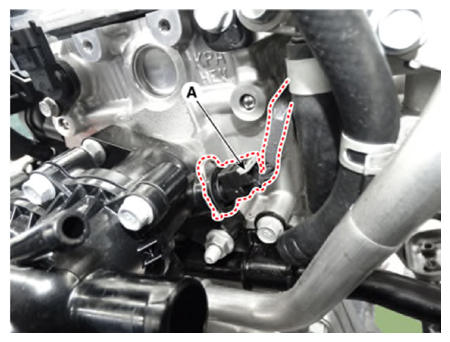

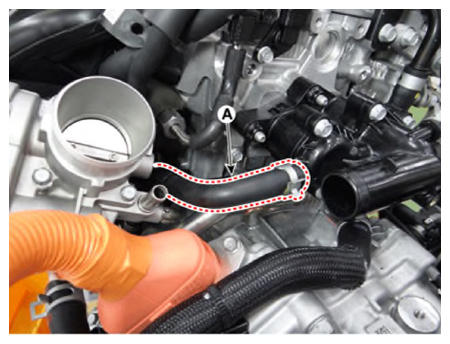

Disconnect the water temperature sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

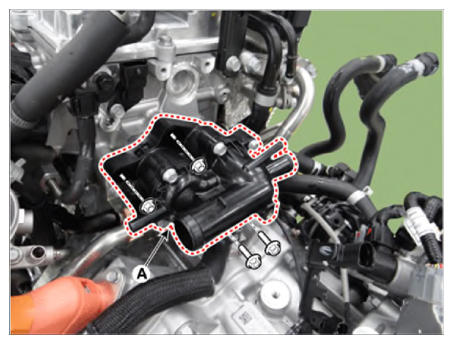

Remove the water temperature control assembly (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- When you use current-carrying bolts and nuts for the coolant temperature control assembly, use the specified bolts and nuts.
- Before mounting the coolant temperature control assembly, clean the contact surface.
- Before mounting the coolant temperature control assembly, make sure that the thermostat for separate cooling is not open or closed stuck due to foreign substance.
Install in the reverse order of removal.
