Repair Procedures: Inspection

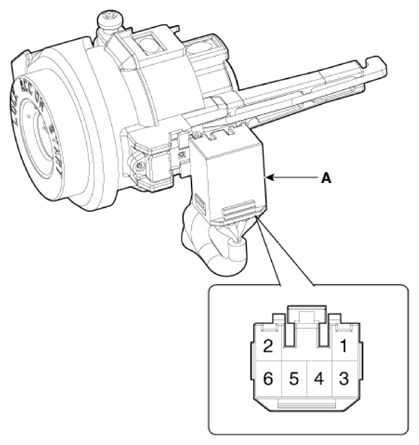

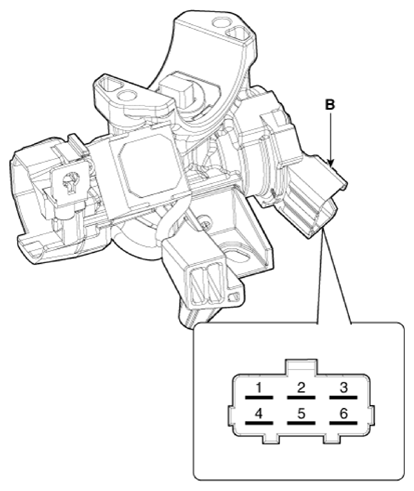

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G13350974Courtesy of KIA MOTORS AMERICA, INC.
    G13350975Courtesy of KIA MOTORS AMERICA, INC.

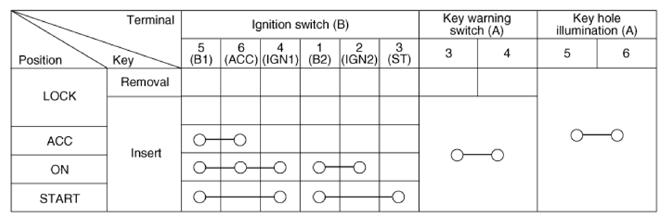

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G13350976Courtesy of KIA MOTORS AMERICA, INC.
