Repair Procedures: Removal

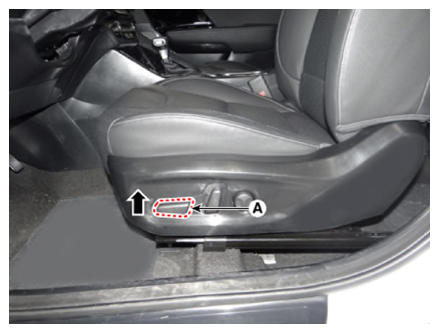

  1. Before removing the driver side seat assembly, pull it upward to the maximum by pushing the front seat height adjusting switch (A).
    G13351040Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

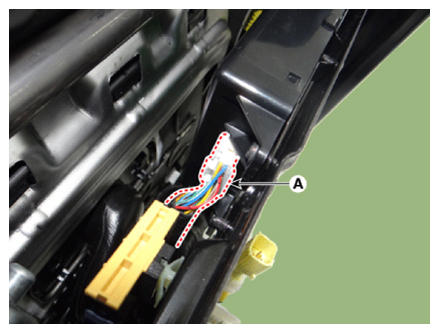

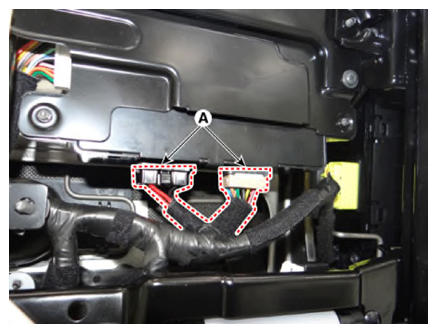

  4. Disconnect the IMS unit connectors (A).
    G13351041Courtesy of KIA MOTORS AMERICA, INC.
    G13351042Courtesy of KIA MOTORS AMERICA, INC.

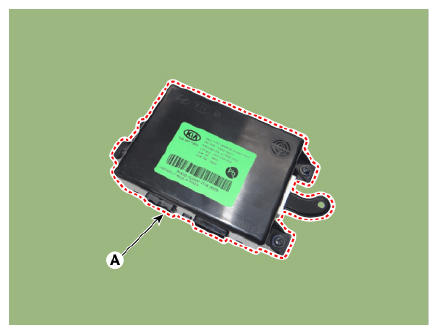

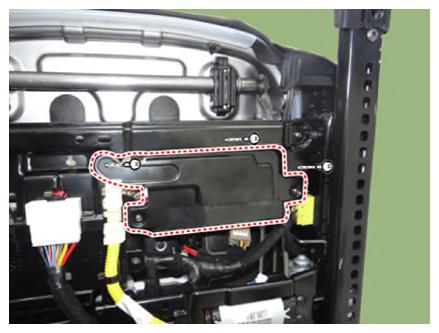

  5. Remove the IMS unit (A) after loosening the mounting screws.
    G13351043Courtesy of KIA MOTORS AMERICA, INC.
    G13351044Courtesy of KIA MOTORS AMERICA, INC.
