Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

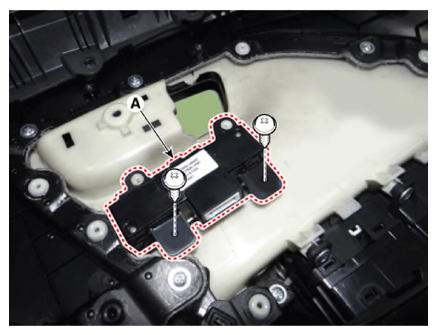

  3. Remove the memory power seat switch (A) after loosening the mounting screws.
    G13351046Courtesy of KIA MOTORS AMERICA, INC.
