Service Point Target Auto Calibration (SPTAC) Procedure

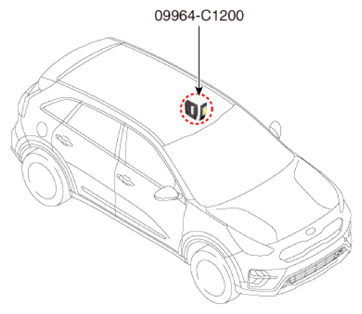

  1. Install the SST (09964-C1200) on the roof center above the vehicle's front windshield.
    G13351748Courtesy of KIA MOTORS AMERICA, INC.

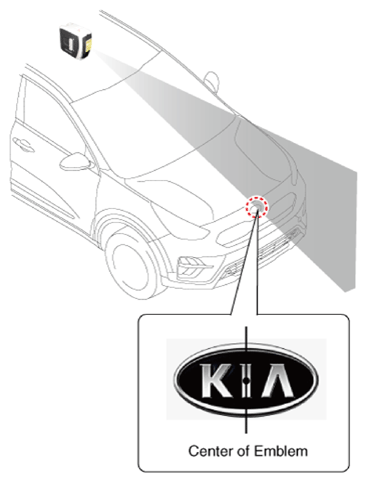

  2. Have the laser illuminate starting from the roof center and to passing through the emblem center.
    G13351749Courtesy of KIA MOTORS AMERICA, INC.

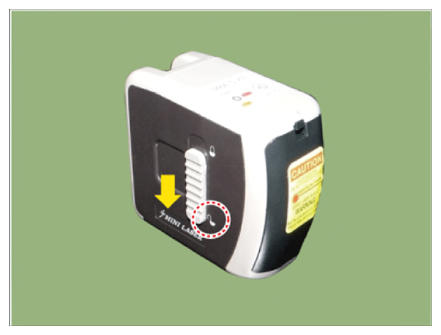

    Information

    The level laser must be set to 'ON' and the holding (locking) function is not used.

    G13351750Courtesy of KIA MOTORS AMERICA, INC.

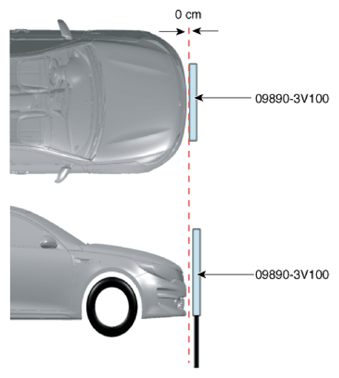

  3. Place the calibration target (09890-3V100) so that it adheres by 0 cm to the bumper front. (max. tolerance: 5 cm)
    G13351751Courtesy of KIA MOTORS AMERICA, INC.

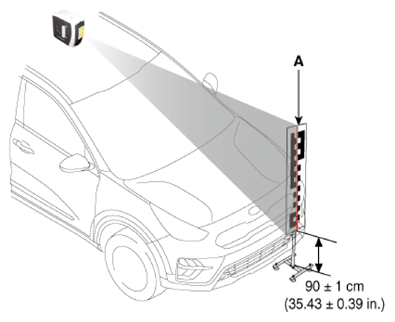

  4. Set the calibration target height to 90 ± 1 cm (35.43 ± 0.39 in.) from the ground and align the center of calibration target with center line (A) of laser beam.
    G13351752Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).

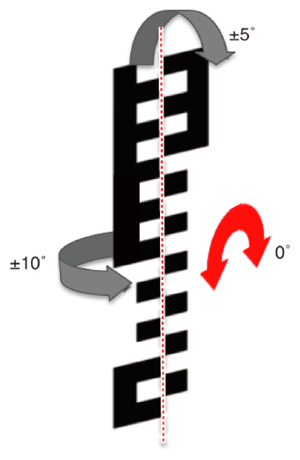

    • Align the calibration target (09890-3V100) referring to the below tolerance angle.
      G13351753Courtesy of KIA MOTORS AMERICA, INC.
      G13351754Courtesy of KIA MOTORS AMERICA, INC.
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

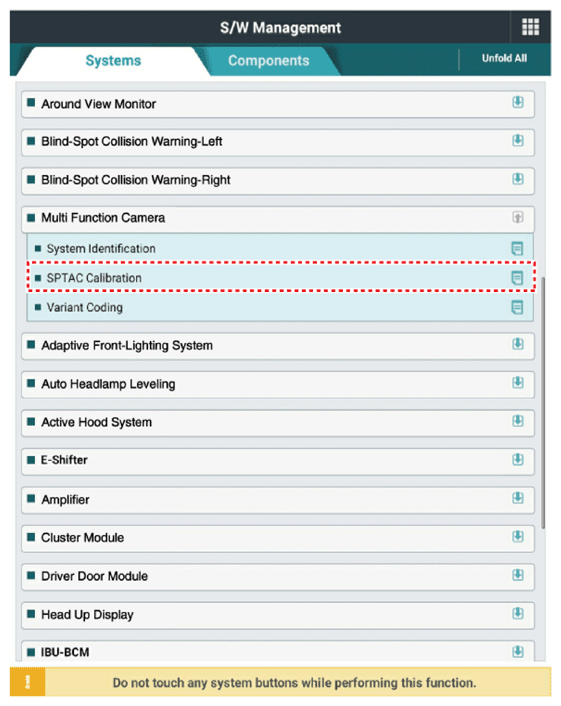

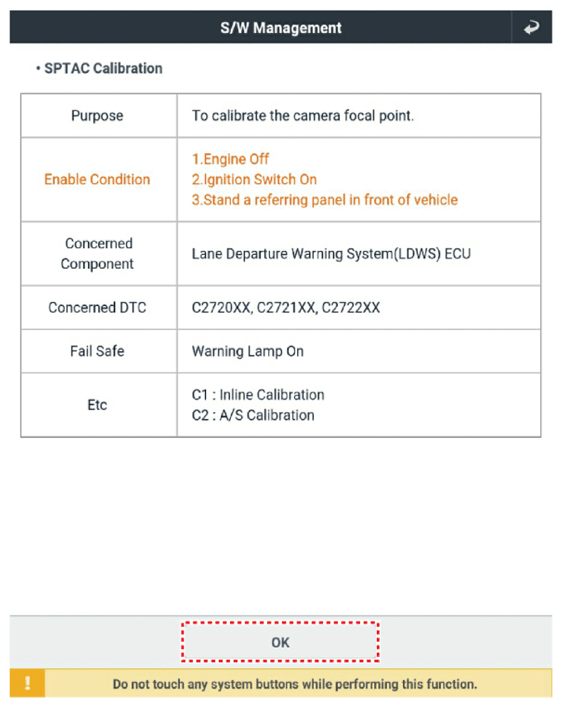

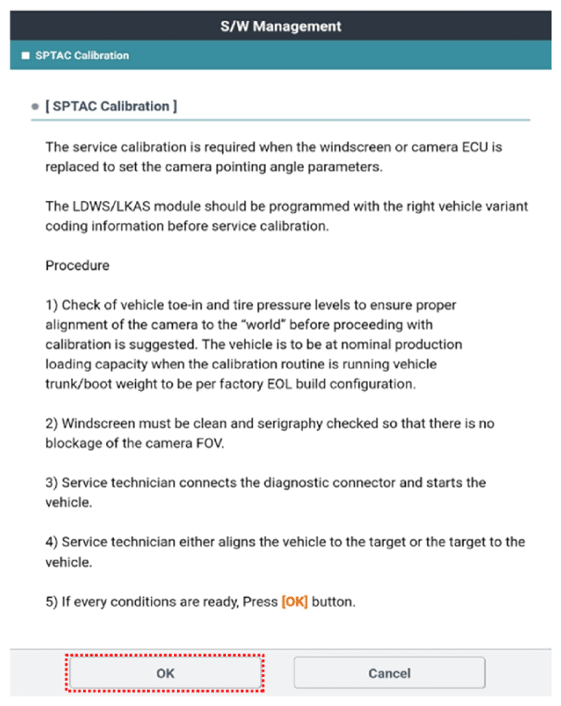

  5. Perform the "SPTAC Calibration" using the KDS.
    G13351755Courtesy of KIA MOTORS AMERICA, INC.
    G13351756Courtesy of KIA MOTORS AMERICA, INC.
    G13351757Courtesy of KIA MOTORS AMERICA, INC.

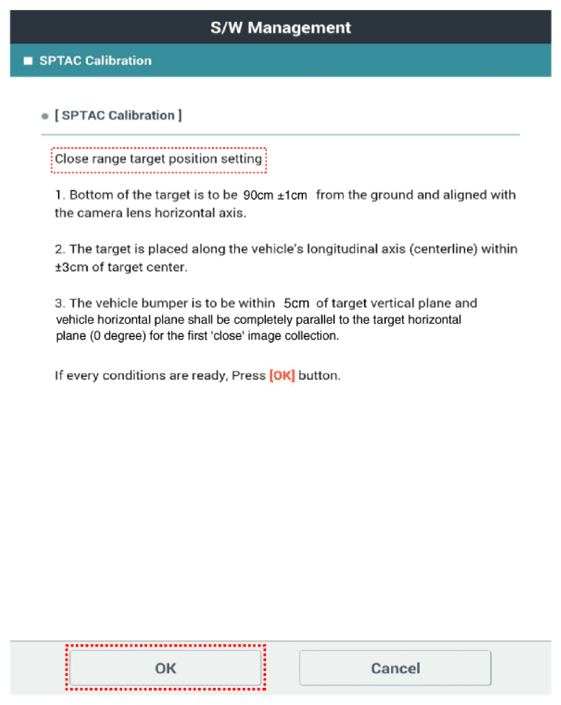

  6. Perform the short-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13351758Courtesy of KIA MOTORS AMERICA, INC.
    G13351759Courtesy of KIA MOTORS AMERICA, INC.

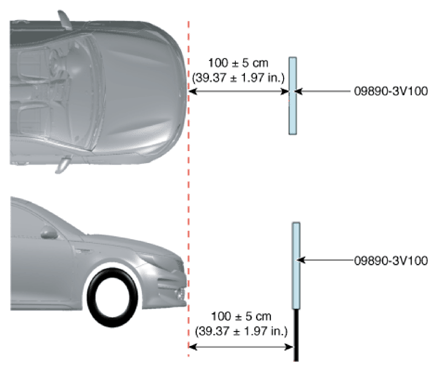

  7. Move the calibration target (09890-3V100) at 100 cm (39.37 in.) from the bumper. [max. tolerance: 5 cm (1.97 in.)]
    G13351760Courtesy of KIA MOTORS AMERICA, INC.

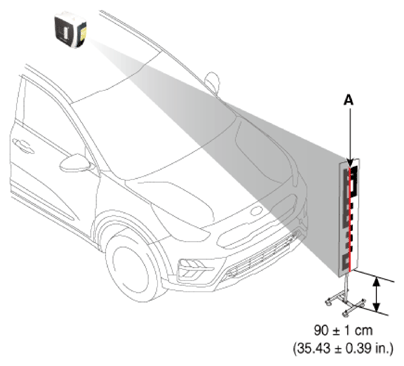

  8. Align the center of calibration target with center line (A) of laser beam.
    G13351761Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the below tolerance angle.
      G13351762Courtesy of KIA MOTORS AMERICA, INC.
      G13351763Courtesy of KIA MOTORS AMERICA, INC.
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

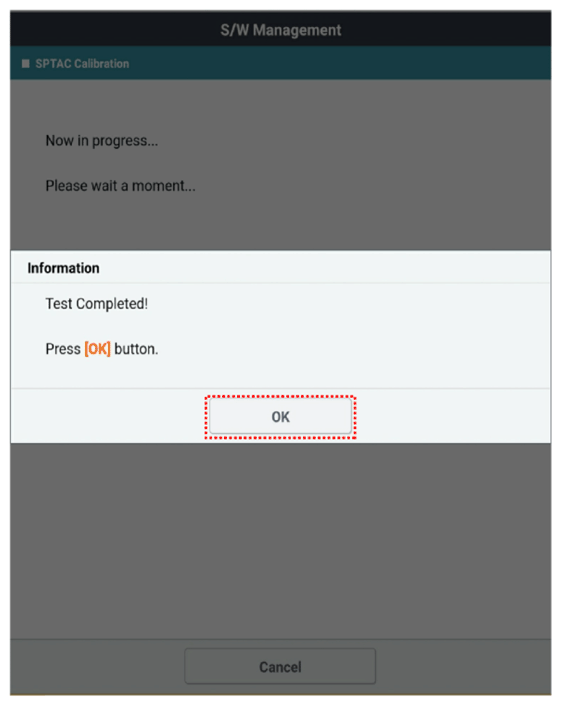

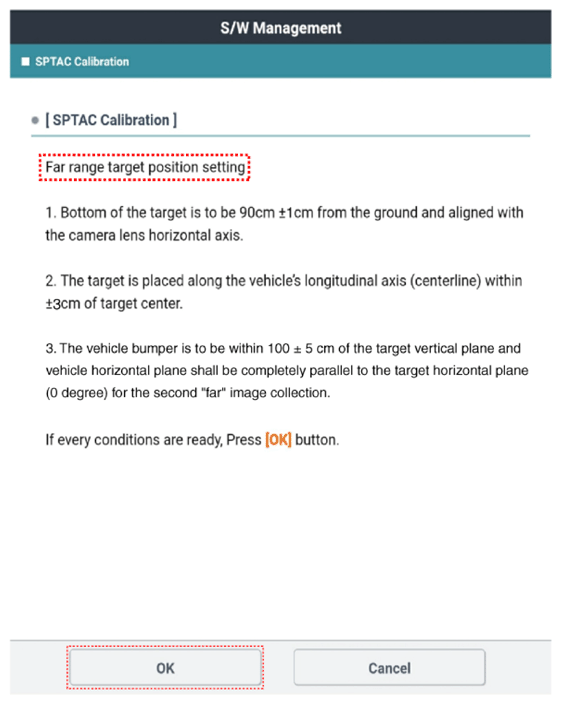

  9. Perform the long-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13351764Courtesy of KIA MOTORS AMERICA, INC.
    G13351765Courtesy of KIA MOTORS AMERICA, INC.
    G13351766Courtesy of KIA MOTORS AMERICA, INC.
  10. Clear the diagnostic trouble codes (DTC) using the KDS.
  11. Check the DTC and warning lamp.
