Repair Procedures: Removal

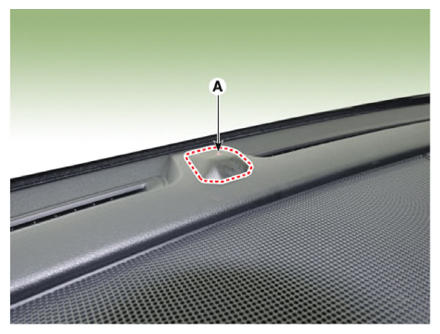

  1. Remove the auto light sensor (A) from the main crash pad.
    G13350820Courtesy of KIA MOTORS AMERICA, INC.

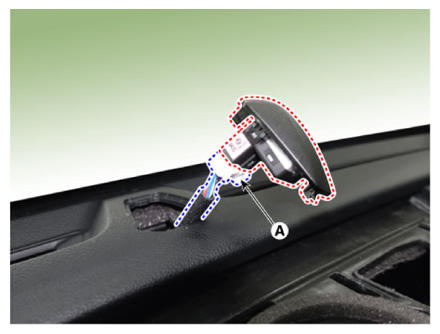

  2. Disconnect the connector (A) from the auto light sensor.
G13350821Courtesy of KIA MOTORS AMERICA, INC.
