Home >> Kia >> 2021 >> Niro LXS >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (HEV) >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

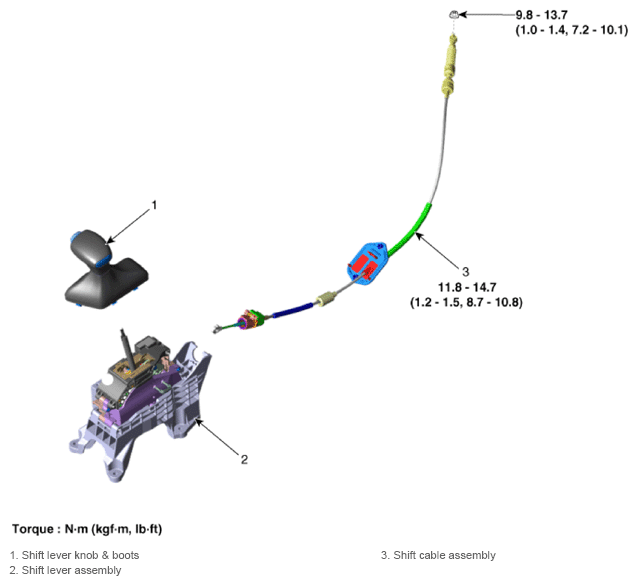

Fig 1: Shift Cable Components Location With Torque Specification

G13436993

Courtesy of KIA MOTORS AMERICA, INC.
