Components And Components Location: Components

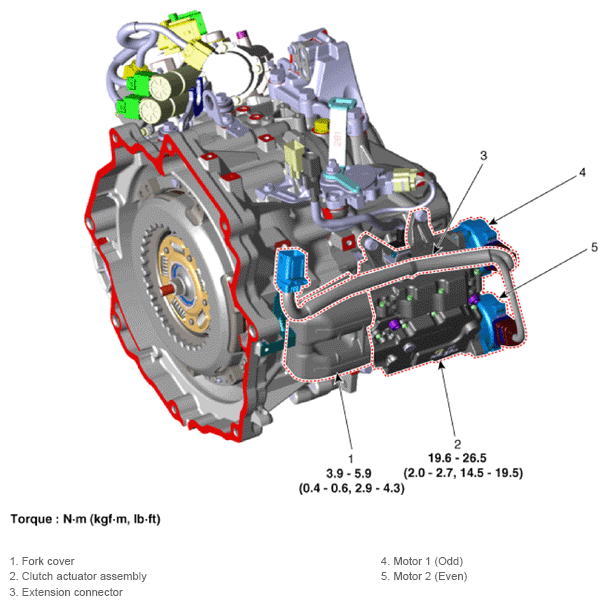

Fig 1: Clutch Actuator Assembly Components Location With Torque Specification

G13436913

Courtesy of KIA MOTORS AMERICA, INC.
