Repair Procedures: Removal

  1. Open the fuel filler door.
  2. Switch "OFF" the ignition and disconnect the negative (-) terminal of the auxiliary 12V battery.

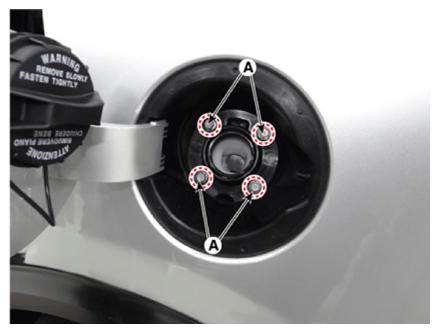

  3. Remove the filler-neck assembly mounting bolt (A).
    G13436732Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.

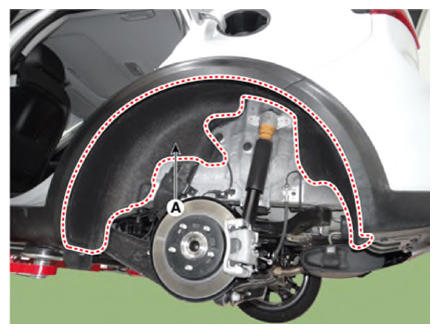

  5. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G13436733Courtesy of KIA MOTORS AMERICA, INC.

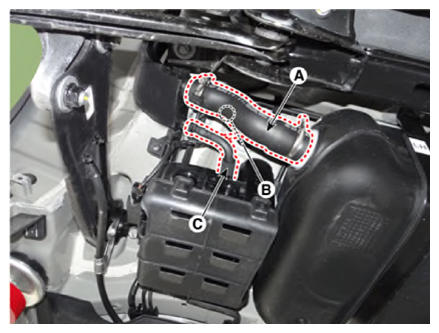

  6. Disconnect the fuel filler hose (A) and leveling hose (B).
  7. Disconnect the ventilation tube quick-connector (C).
    G13436734Courtesy of KIA MOTORS AMERICA, INC.

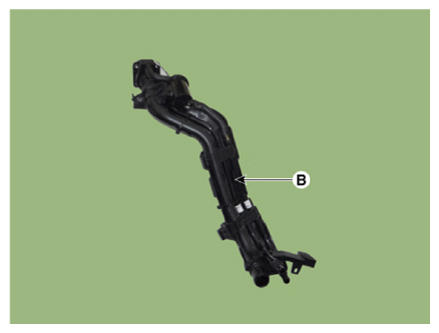

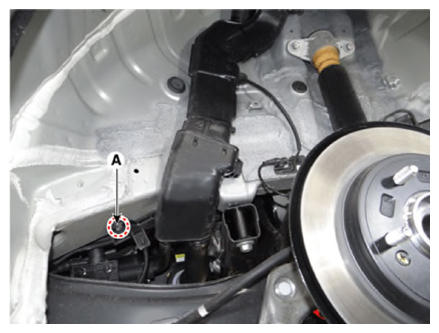

  8. Remove the filler-neck assembly (B) after loosening the mounting bolt (A).
    G13436735Courtesy of KIA MOTORS AMERICA, INC.
    G13436736Courtesy of KIA MOTORS AMERICA, INC.
