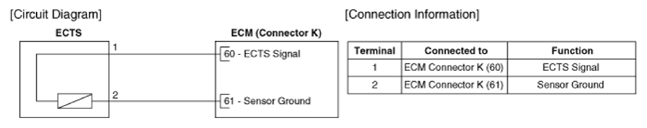

Home >> Kia >> 2021 >> Niro LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram >> ECTS Water Temperature Control Assembly
