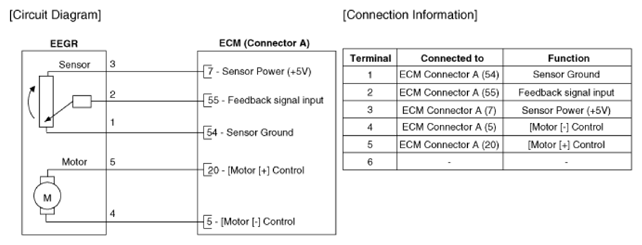

Home >> Kia >> 2021 >> Niro LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Electric EGR Control Valve >> Schematic Diagrams >> Circuit Diagram >> Notes
