FOB Status Check

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

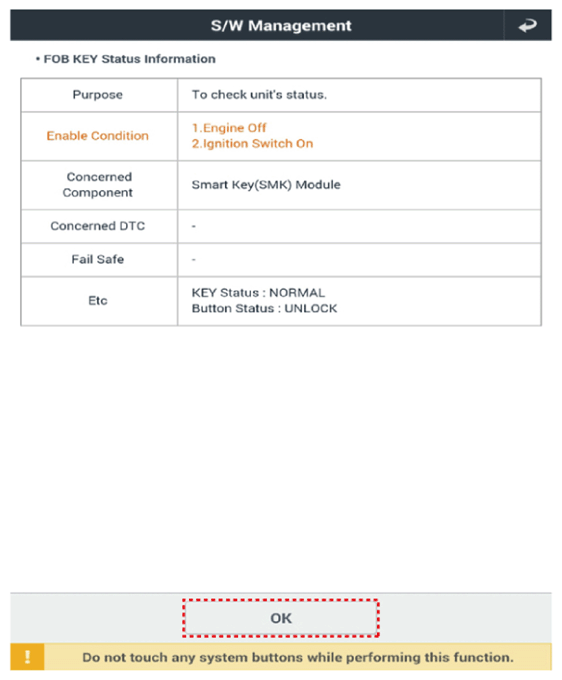

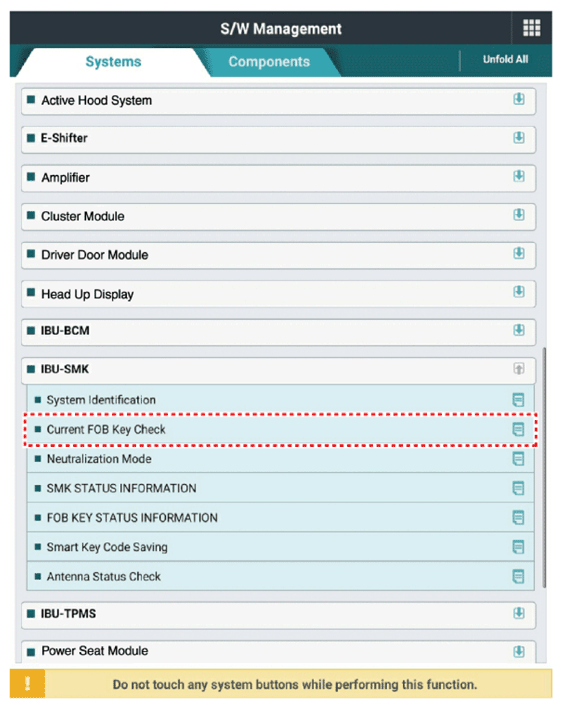

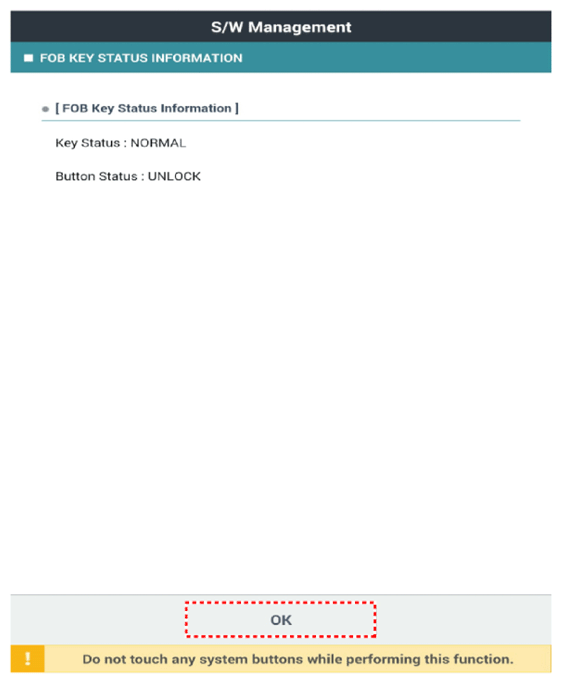

  2. After IG ON, select the "FOB KEY STATUS INFO".
    G13204875Courtesy of KIA MOTORS AMERICA, INC.
    G13204876Courtesy of KIA MOTORS AMERICA, INC.
    G13204877Courtesy of KIA MOTORS AMERICA, INC.
