Circuit Diagram

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

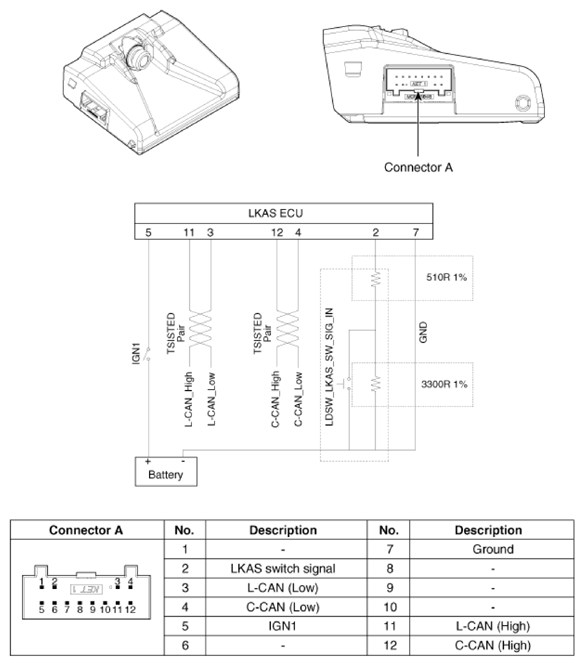

Fig 1: Front View Camera Unit Connector End View And Circuit Description
G13204373Courtesy of KIA MOTORS AMERICA, INC.
