Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  2. After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.

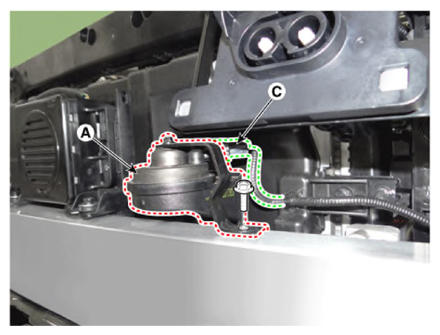

    G13375298Courtesy of KIA MOTORS AMERICA, INC.

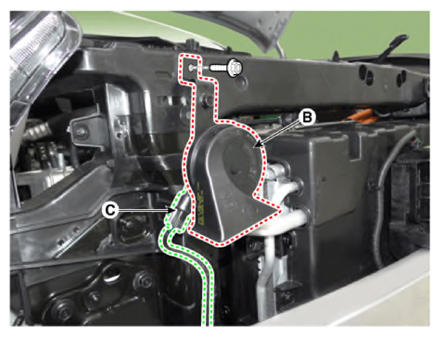

    G13375299Courtesy of KIA MOTORS AMERICA, INC.
