Repair Procedures: Removal

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Put on gloves to protect your hands.

NOTE:

Take care not to bend or scratch the trim and panels.
Handling wireless charging system parts by wet hands may cause electric shock.

Disconnect the negative battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

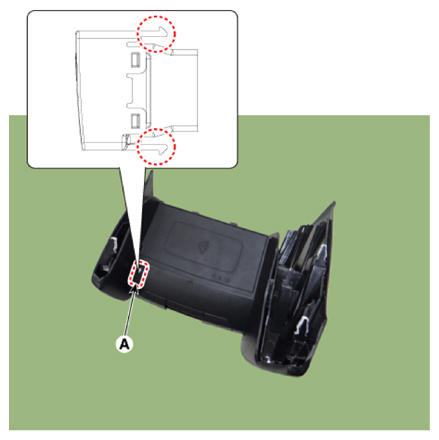

Remove the wireless charging indicator (A).

Courtesy of KIA MOTORS AMERICA, INC.

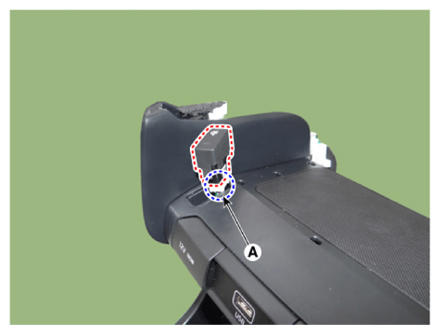

Disconnect the connector (A) from the wireless charging indicator.

Courtesy of KIA MOTORS AMERICA, INC.
