Repair Procedures: Replacement

  1. Disconnect the negative battery terminal.
  2. Remove the console upper complete assembly.

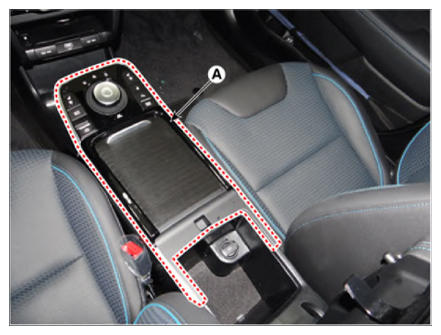

    1. Remove the console upper complete assembly (A) by using a screwdriver or remover.
      G13374397Courtesy of KIA MOTORS AMERICA, INC.

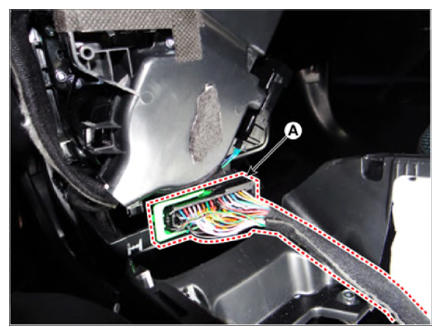

    2. Disconnect the console upper complete connector (A).
      G13374398Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the dial-type SBW cover.

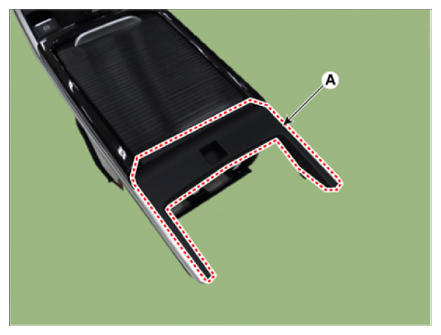

    1. Remove the console upper rear cover (A) by using a screwdriver or remover.
      G13374399Courtesy of KIA MOTORS AMERICA, INC.

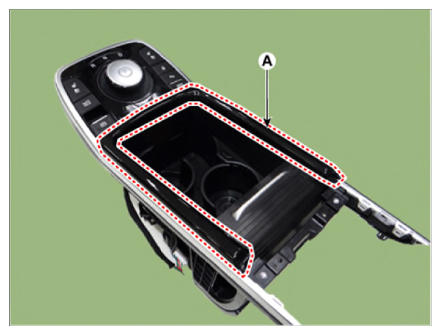

    2. Remove the console molding deco cover (A) by using a screwdriver or remover.
      G13374400Courtesy of KIA MOTORS AMERICA, INC.

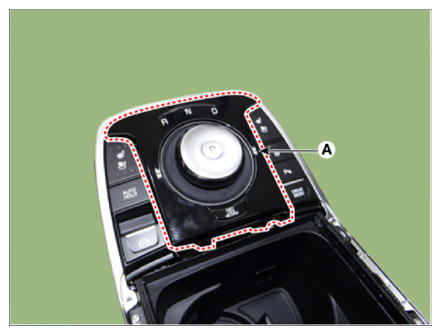

    3. Remove the dial-type SBW cover (A) by using a screwdriver or remover.
      G13374401Courtesy of KIA MOTORS AMERICA, INC.

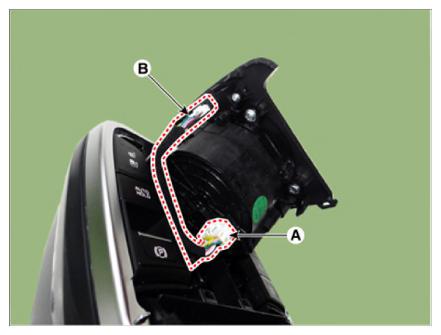

    4. Disconnect the dial-type SBW connector (A) and indicator connector (B).
      G13374402Courtesy of KIA MOTORS AMERICA, INC.

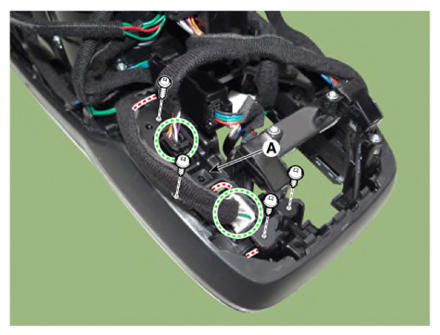

  4. Remove the console upper switch (A) by loosening the mounting screws after disconnecting the connector.
    G13374403Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
