Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

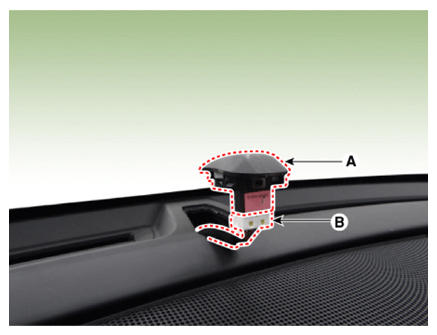

  2. Remove the auto light sensor (A) from center speaker grille.
  3. Disconnect the auto light sensor connector (B).
    G13375076Courtesy of KIA MOTORS AMERICA, INC.
