Repair Procedures: Removal

NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

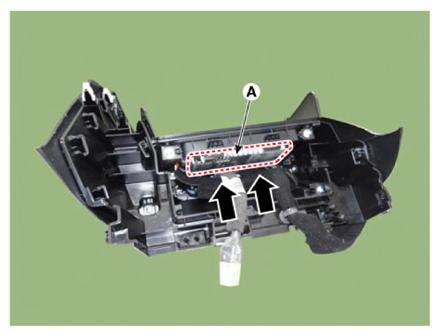

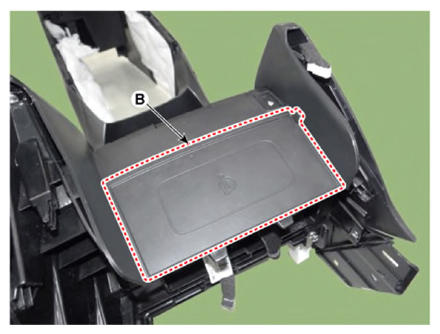

  3. Separate the wireless charging assembly (A) by pushing in the direction of the arrow after removing the wireless charging pad (B).
    G13375055Courtesy of KIA MOTORS AMERICA, INC.
    G13375056Courtesy of KIA MOTORS AMERICA, INC.

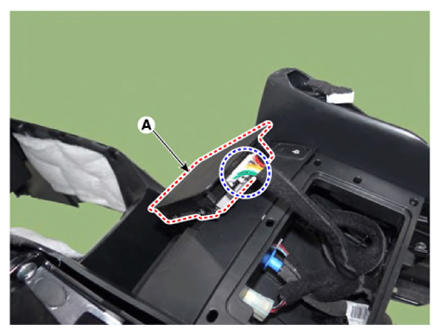

  4. Remove the wireless charging assembly (A) after disconnecting the connector.
    G13375057Courtesy of KIA MOTORS AMERICA, INC.

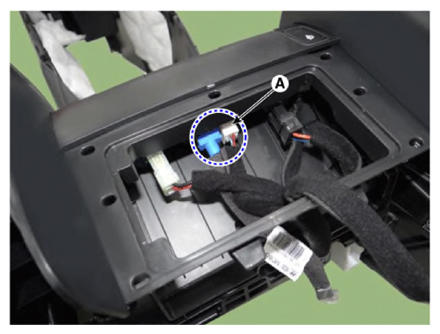

  5. Disconnect the multimedia jack connector (A).
    G13375058Courtesy of KIA MOTORS AMERICA, INC.

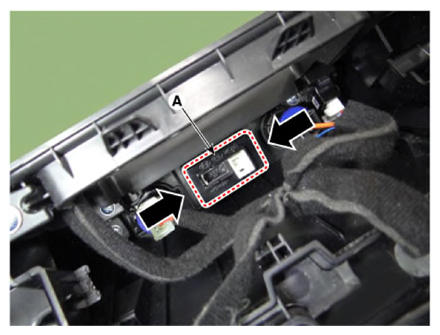

  6. Remove the multimedia jack (A) after releasing the fixed hooks.
    G13375059Courtesy of KIA MOTORS AMERICA, INC.
