Repair Procedures: Removal

CAUTION:
  • Be careful not to scratch the center fascia upper panel and related parts.
  • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
  • Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
  1. Disconnect the negative (-) battery terminal.

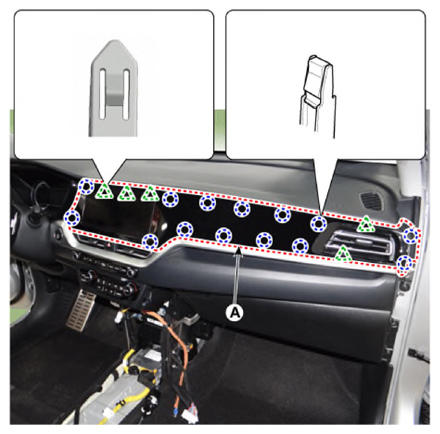

  2. Remove the crash pad plate [RH] (A).
    G13375018Courtesy of KIA MOTORS AMERICA, INC.

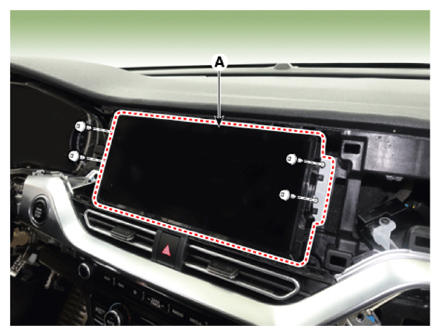

  3. Remove the audio head unit (A) after loosening the mounting screws.
    G13375019Courtesy of KIA MOTORS AMERICA, INC.

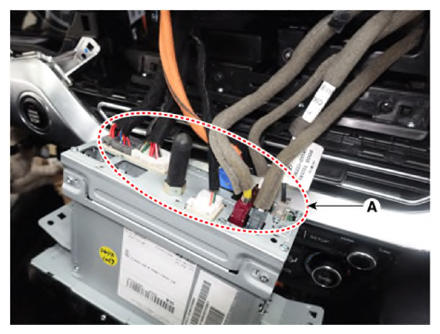

  4. Disconnect the connectors (A) from the audio head unit.
    G13375020Courtesy of KIA MOTORS AMERICA, INC.
