Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

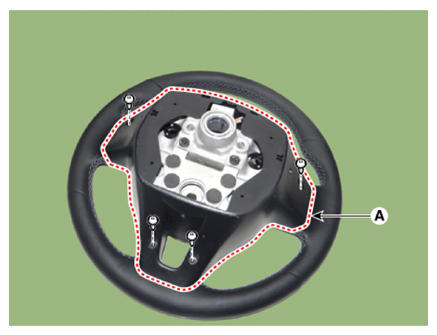

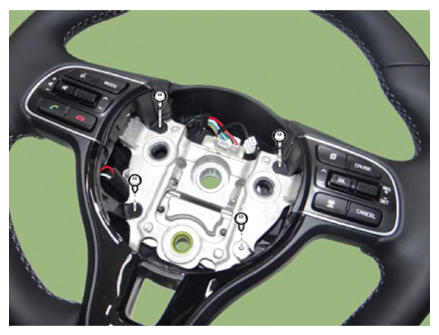

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13375042Courtesy of KIA MOTORS AMERICA, INC.
    G13375043Courtesy of KIA MOTORS AMERICA, INC.

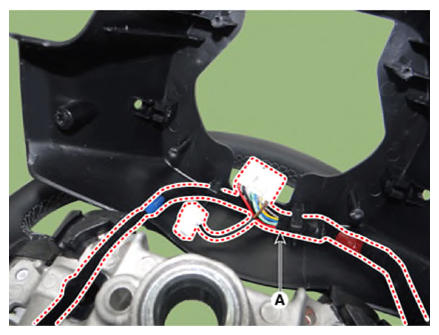

  4. Remove the wiring connector (A) from the steering back cover.
    G13375044Courtesy of KIA MOTORS AMERICA, INC.

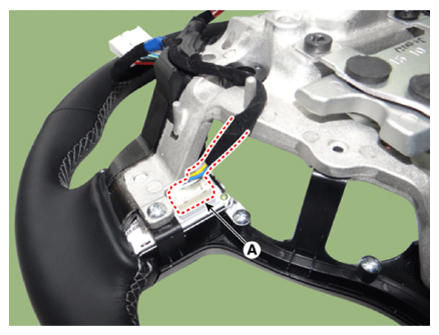

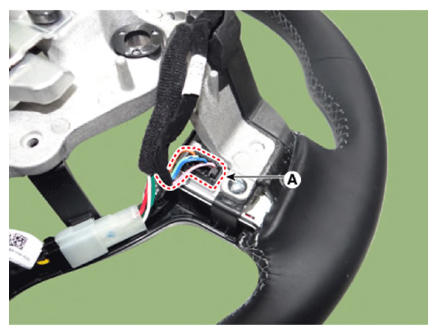

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G13375045Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13375046Courtesy of KIA MOTORS AMERICA, INC.

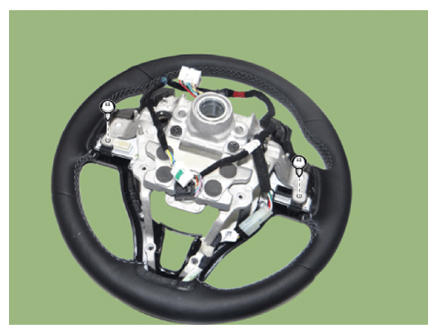

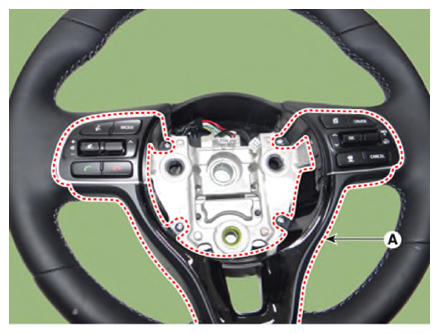

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G13375047Courtesy of KIA MOTORS AMERICA, INC.
    G13375048Courtesy of KIA MOTORS AMERICA, INC.

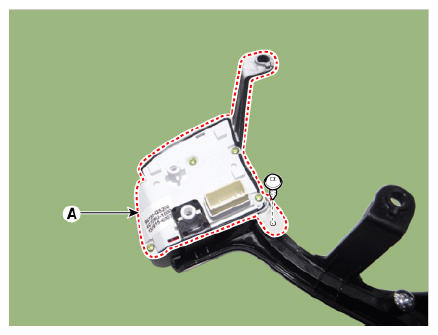

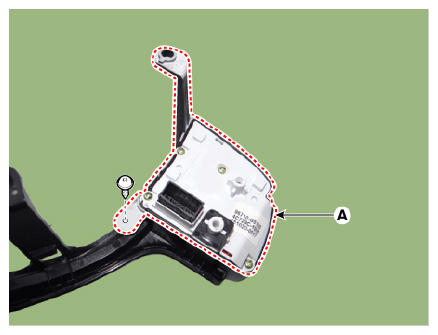

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G13375049Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13375050Courtesy of KIA MOTORS AMERICA, INC.
