Connector And Terminal Function

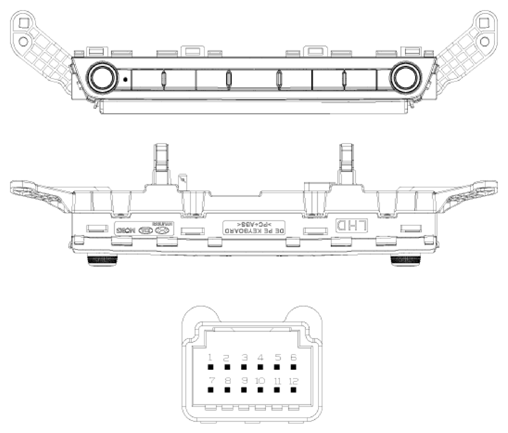

G13375021Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 -
2 Battery (+)
3 ACC
4 IGN1
5 Illumination (-)
6 Illumination (+)
7 MM-CAN (Low)
8 MM-CAN (High)
9 -
10 Ground
11 -
12 -
