Repair Procedures: Removal

  1. Remove the crash pad garnish assembly [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

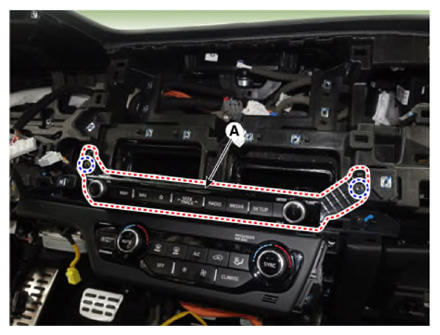

  2. Remove the keyboard (A) after loosening the mounting screws.
    G13375022Courtesy of KIA MOTORS AMERICA, INC.

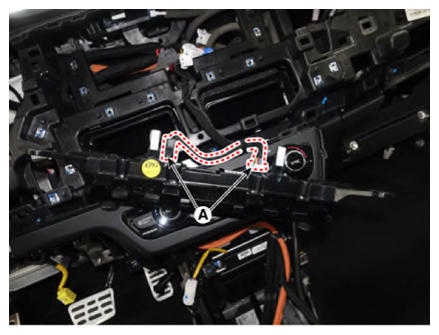

  3. Disconnect the connectors (A) from the keyboard.
    G13375023Courtesy of KIA MOTORS AMERICA, INC.
