Cruise Control System
>>
Cruise Control Switch
>>
Schematic Diagrams
>>
Connector And Terminal Function
Connector And Terminal Function

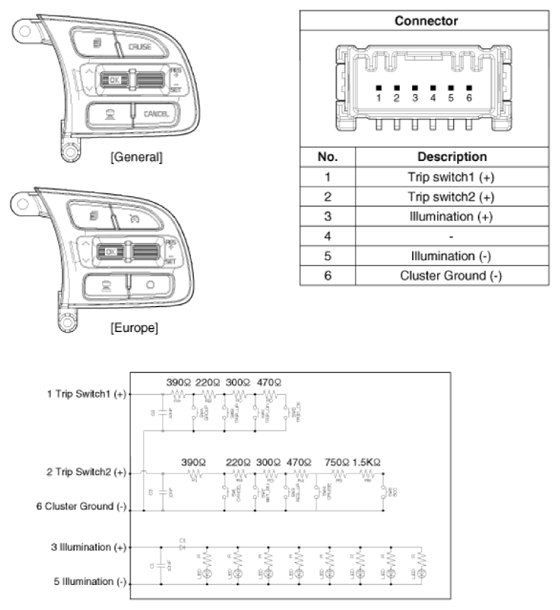

[Trip + Cruise]
Courtesy of KIA MOTORS AMERICA, INC.

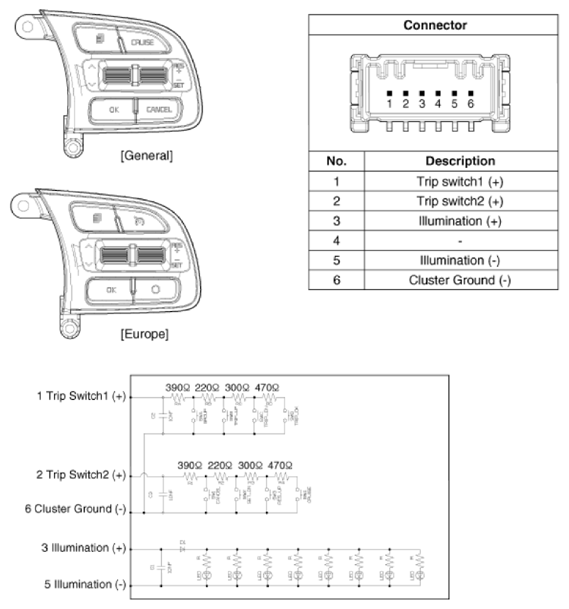

[Trip + Cruise + SCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
