Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the front seat outer shield cover.
(Refer to " Replacement ")
Remove the front seat inner shield cover.
(Refer to " Replacement ")
Remove the front seat lower protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

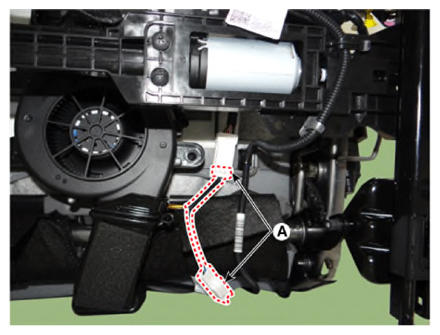

Disconnect the front seat cushion connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

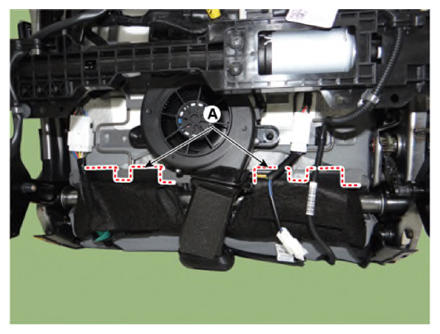

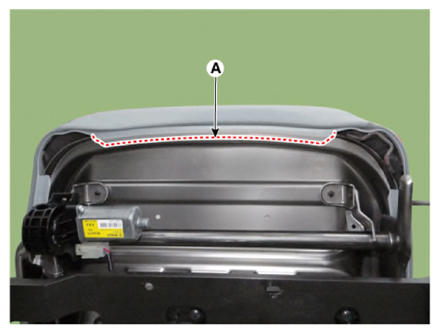

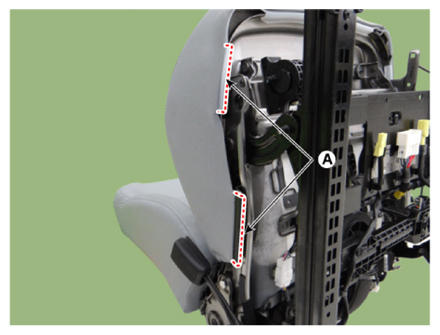

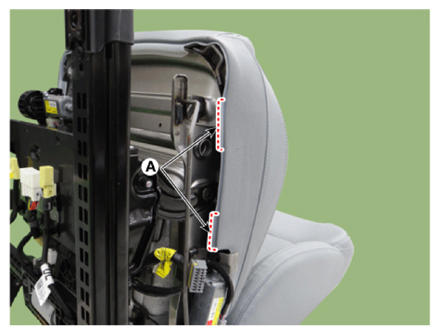

Unclip the protector (A) on the side of the front seat cushion cover using a remover and remove the front seat cushion cover.
[Upper]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[Lower]

Courtesy of KIA MOTORS AMERICA, INC.

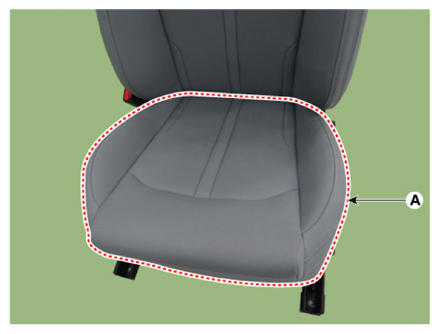

Remove the front seat cushion assembly (A) from the front seat cushion frame.

Courtesy of KIA MOTORS AMERICA, INC.

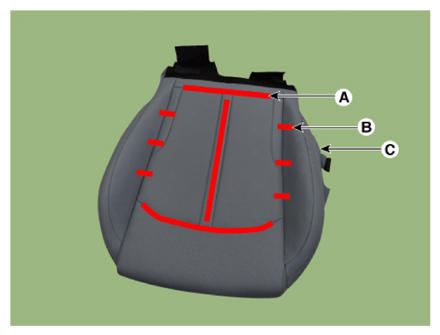

After removing the velcro tape (A) and hog-ring clips (B) inside the front seat cushion cover, remove the seat cushion cover (C).
CAUTION: Be careful not to deviate from the pads, insert wires, and aplix.

Courtesy of KIA MOTORS AMERICA, INC.

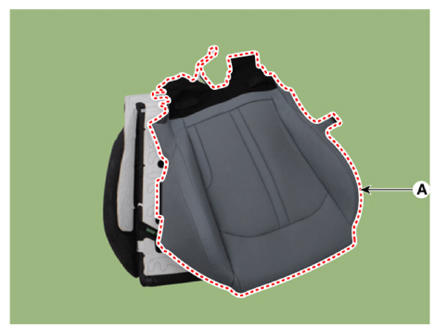

Remove the front seat cushion cover (A) from the front seat cushion pad.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connectors are connected completely.
- Replace any damaged clips (or pin-type retainers).

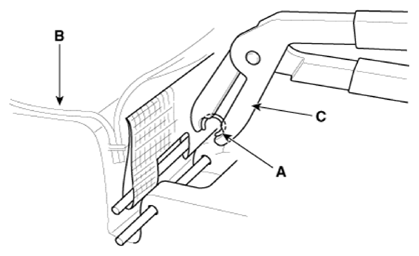

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
Courtesy of KIA MOTORS AMERICA, INC.
