Repair Procedures: Installation

NOTE:

When assembling, be careful not to let dust and foreign substances enter.
Driveshaft joints require special grease, so do not add any other type of grease.
Boot bands must use the new one.

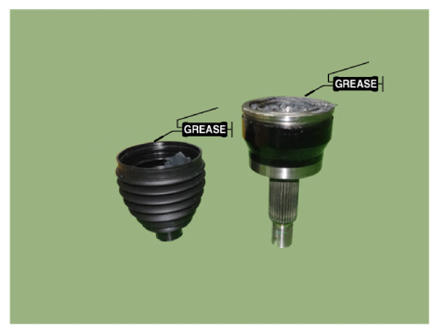

Apply grease within the joint housing and the boot.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Use the grease supplied with joint kits/boot kits.
- Driveshaft joints require special grease, so do not add any other type of grease.
- A certain amount of grease (2-30%) is applied in the boot.

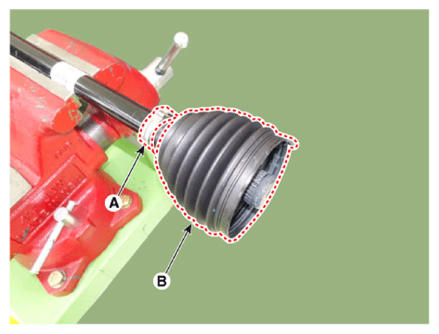

Install the wheel side boot band (A) and boot (B) to the driveshaft.

Courtesy of KIA MOTORS AMERICA, INC.

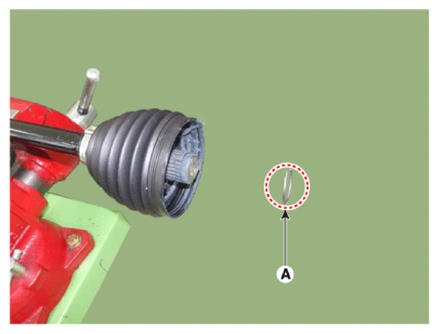

Fit the circlip (A) to the joint.

Courtesy of KIA MOTORS AMERICA, INC.
Insert the boot into the joint.

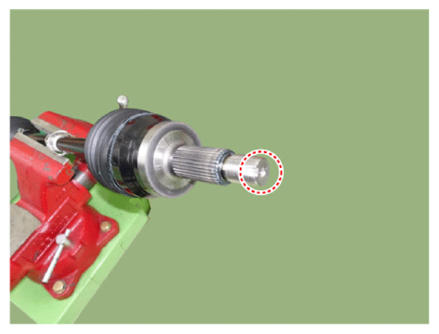

Using a plastic mallet, lower the top of the joint spline 2~3 times.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Be careful not to damage parts when using a plastic hammer.

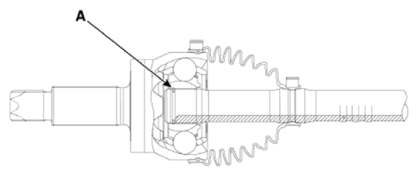

After installing, the joint assembly and circlip (A) see that it is properly seated.

There should be a feeling of squeezing when the joint assembly is pushed and pulled.

Courtesy of KIA MOTORS AMERICA, INC.

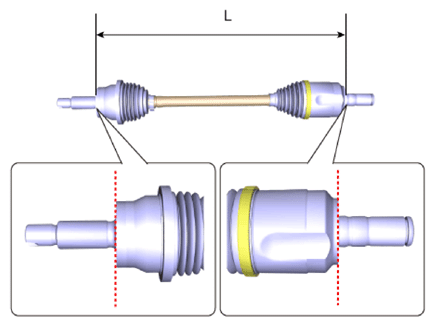

Set the distance between the driveshafts to the standard value and install the boot band to regulate the air in the wheel side boot.

Engine	Distance (L) mm (in.)
Engine	LH side	RH side
GAMMA-ll 1.6 T-GDI	559.7 (22.0354)	814.4 (32.0629)

Courtesy of KIA MOTORS AMERICA, INC.

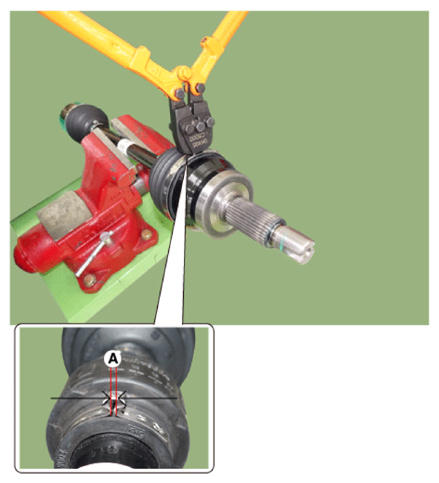

Install the small diameter boot band by using the SST (0K495-C5000).
Clearance (A) : 2.0 mm (0.0787 in.) or less

Courtesy of KIA MOTORS AMERICA, INC.

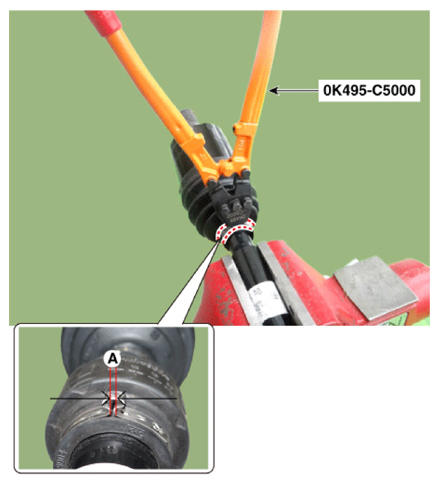

Install the large diameter boot band by using the SST (0K495-C5000).

Clearance (A) : 2.0 mm (0.0787 in.) or less

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When attaching the small diameter band, fasten it in line by clamping the boot as shown in the image (A).

Courtesy of KIA MOTORS AMERICA, INC.
