Rear Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to " Replacement  ")

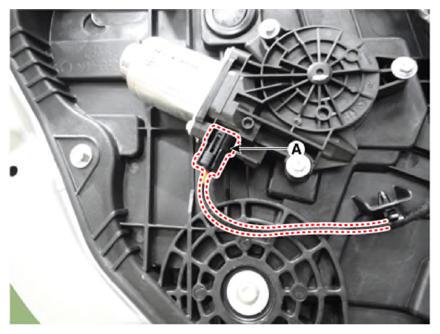

  3. Disconnect the rear power window motor connector (A).
    G13836230Courtesy of KIA MOTORS AMERICA, INC.

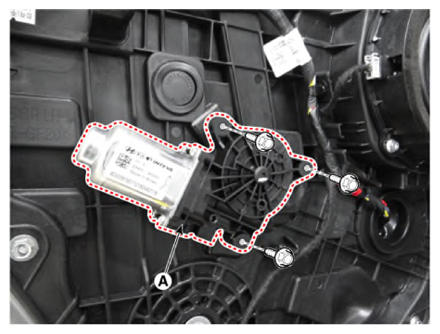

  4. Remove the rear power window motor (A) after loosening the mounting bolts.
    G13836231Courtesy of KIA MOTORS AMERICA, INC.
