Smart Cruise Control (SCC)

  1. Operation specification
    Item Specification
    Max/Min speed for setting speed 30 - 180 km/h (20 - 110 mile/h)
    Max/Min speed for control 0 - 190 km/h (0 - 120 mile/h)

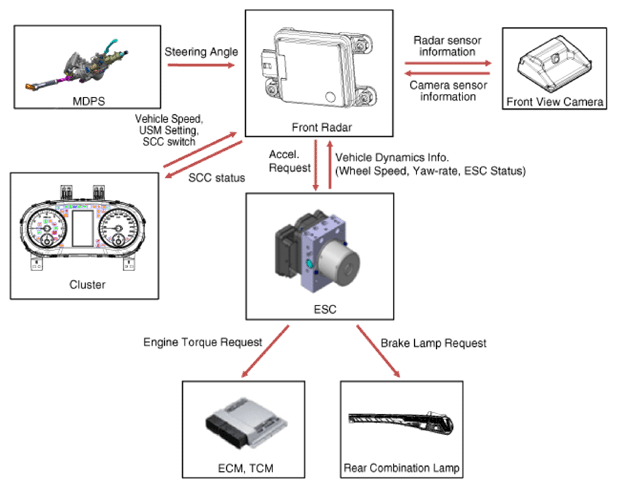

  2. System components
    G13836603Courtesy of KIA MOTORS AMERICA, INC.

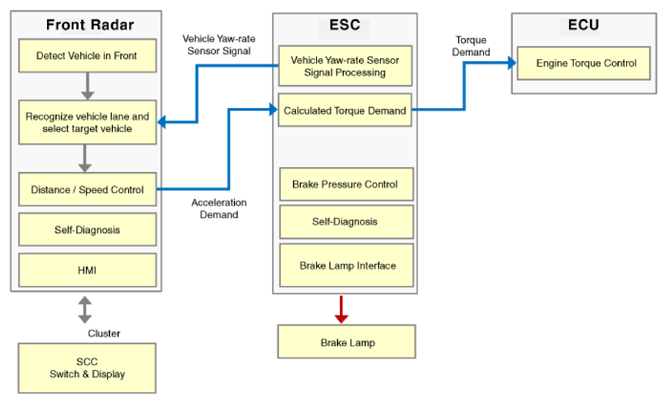

  3. System block diagram
    G13836604Courtesy of KIA MOTORS AMERICA, INC.
