Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON";.
  1. Connect KDS to "Data Link Connector (DLC)".

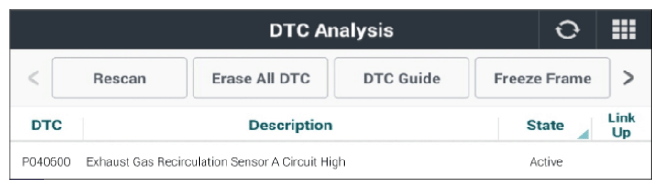

  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Fig.1
G13808278Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
