Visual Inspection

Inspection Procedure

□ Fuel filler cap inspection

1. Cracks or damages on fuel filler cap.
2. Proper installation of fuel filler cap.
3. Correct type of fuel filler cap.

□ Fuel tank leakage inspection

1. Cracks or damages on fuel tank.

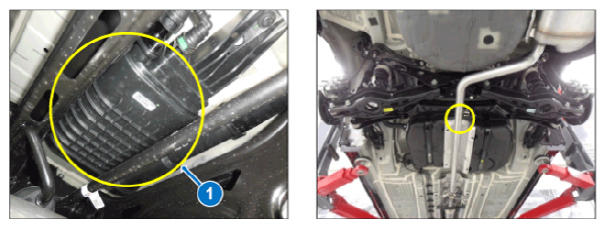

□ Canister inspection

1. Cracks or leakage on canister.
2. Loose connection, distortion, or damage of the vapor hose/tube.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

• Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
