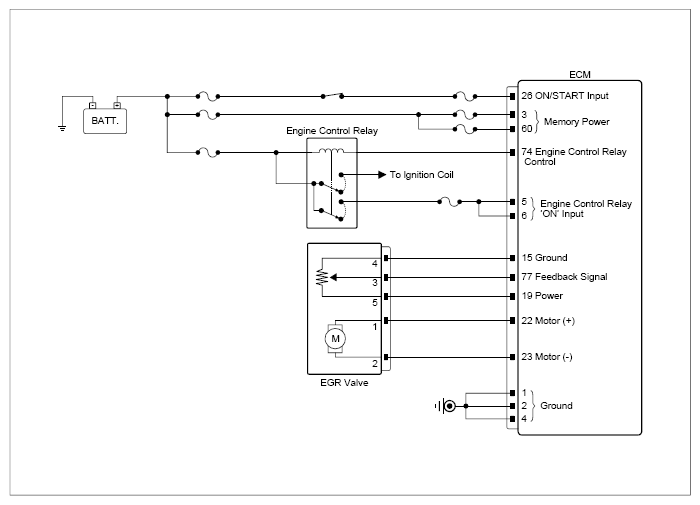

Circuit Inspection

G13808260

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EGR valve connector	3 (signal)	ECM connector	77 (signal)	Approx. below 1Ω
	EGR valve connector	4 (ground)	Chassis ground	-	Approx. below 1Ω
	EGR valve connector	3 (signal)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EGR valve connector	4 (ground)	Chassis ground	-	Approx. 0V
	EGR valve connector	3 (signal)	Chassis ground	-	Approx. 0V
	EGR valve connector	5 (power)	Chassis ground	-	Approx. 5V
	EGR valve connector	2 (-)	Chassis ground	-	Approx. 0V
	EGR valve connector	1 (+)	Chassis ground	-	Approx. 1.8V

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
