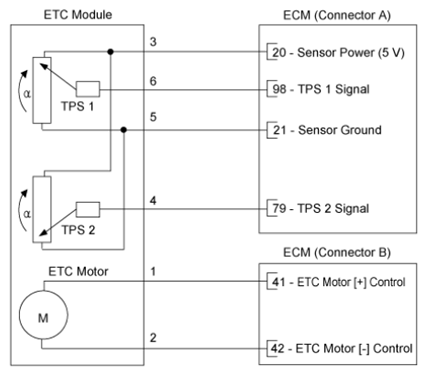

Home >> Kia >> 2021 >> K5 LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Electronic Throttle Control (ETC) System >> Schematic Diagrams >> Circuit Diagram
