Components & Components Location: Component

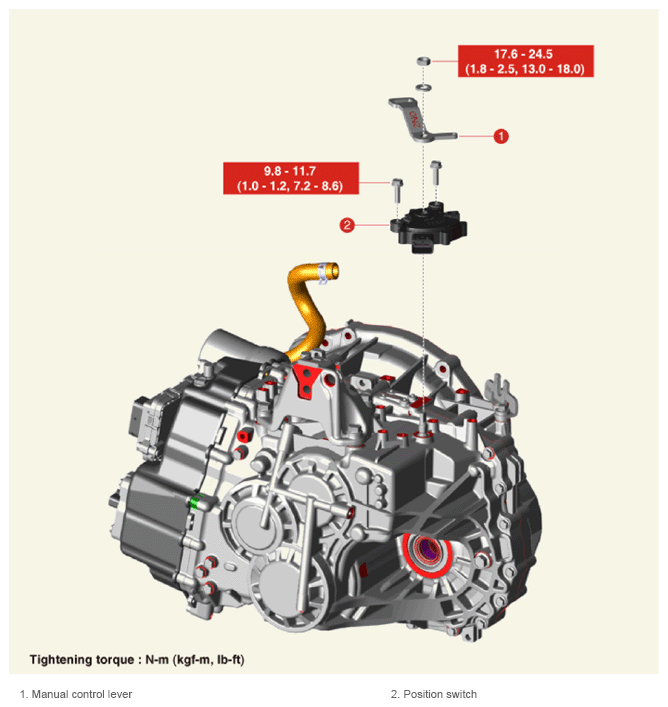

Fig 1: Position Switch Components Location With Torque Specification

G13837718

Courtesy of KIA MOTORS AMERICA, INC.
