Repair Procedures: Removal

(Refer to " Removal  ")

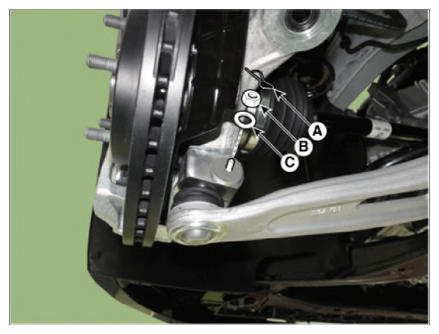

1. Remove the split pin (A).
2. Remove the lower arm mounting nut (B) and washer (C).

   Tightening torque:

   98.1 -117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

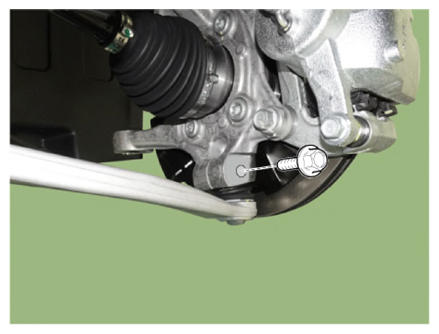

1. After removing bolts from the front knuckle, install and tighten the sub body bolt (A)

   Courtesy of KIA MOTORS AMERICA, INC.

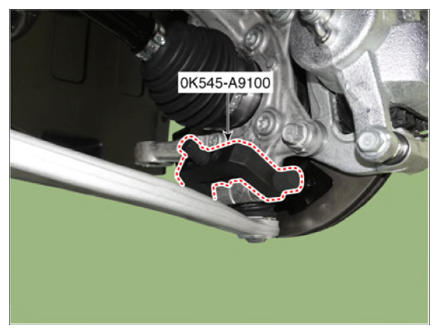

2. Input the sub body (B) between the front knuckle and the sub body bolt.

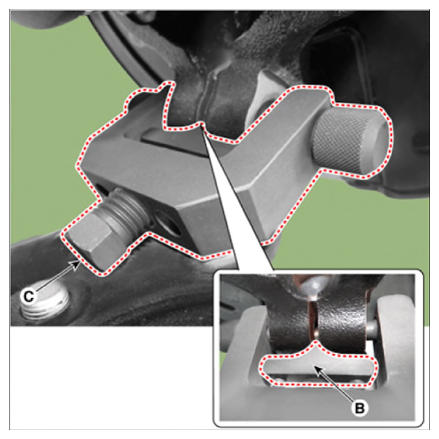

3. Tighten the bolt (C) of the sub body to broaden the gap of the front knuckle.

   Courtesy of KIA MOTORS AMERICA, INC.

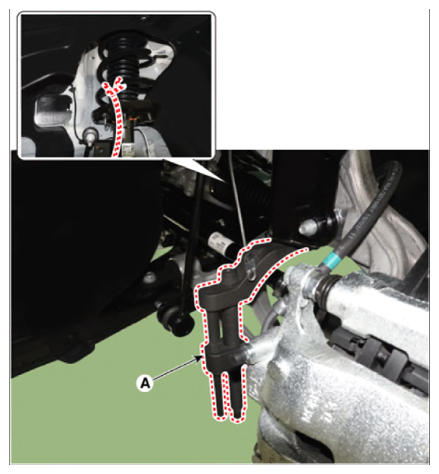

4. Install the safe wire and main body (A) between the front strut and the lower arm.

   Courtesy of KIA MOTORS AMERICA, INC.

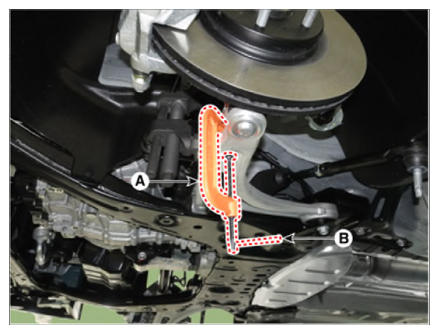

5. After installing a body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

   Courtesy of KIA MOTORS AMERICA, INC.

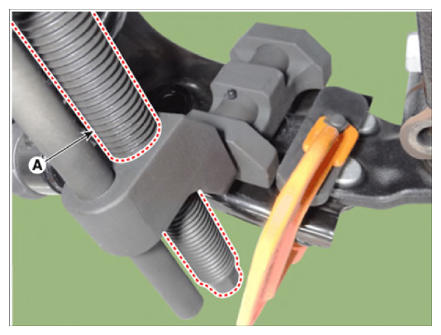

6. Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

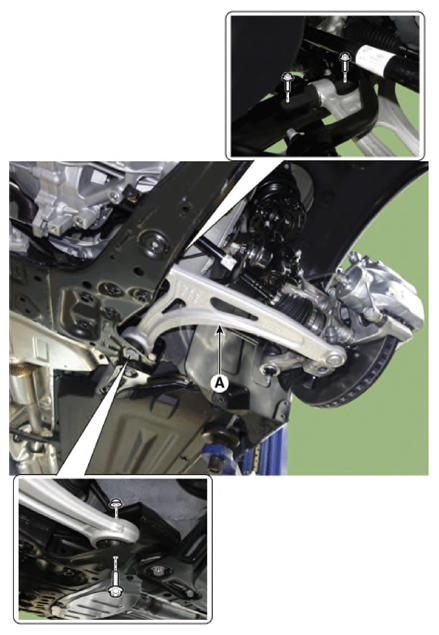

Tightening torque:

156.9-176.5 N.m (16.0- 18.0 kgf.m, 115.7-130.2 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
