Circuit Inspection

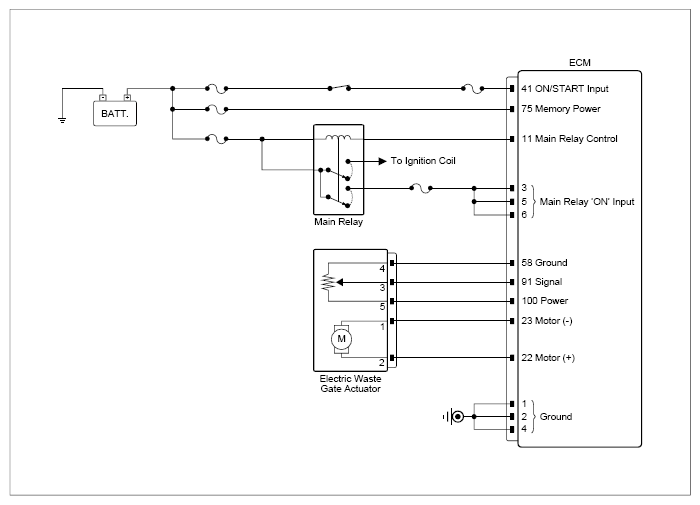

G13815215

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EWGA connector	1 (motor (-))	Chassis ground	-	Approx. 1.7V
	EWGA connector	2 (motor (+))	Chassis ground	-	Approx. 0V
	EWGA connector	5 (power)	Chassis ground	-	Approx. 5V
	EWGA connector	3 (signal)	Chassis ground	-	Approx. 0V
	EWGA connector	4 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EWGA connector	3 (signal)	Chassis ground	-	∞ (infinity)Ω
	EWGA connector	4 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "Component Inspection " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
