Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the heater control unit.

    (Refer to " Replacement  ")

  3. Disconnect the blower motor connector (A).

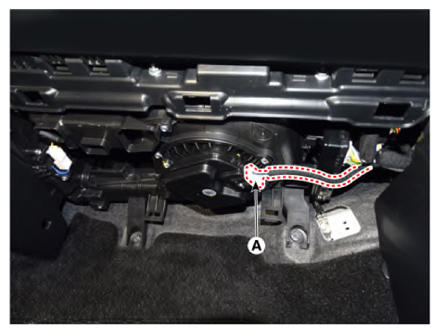

    G13836060Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the IBU (A) by loosening the mounting nuts.

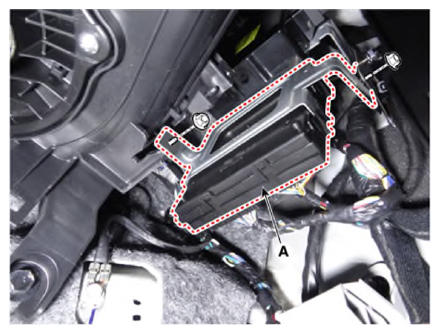

    G13836061Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect all connectors (A) from the IBU.

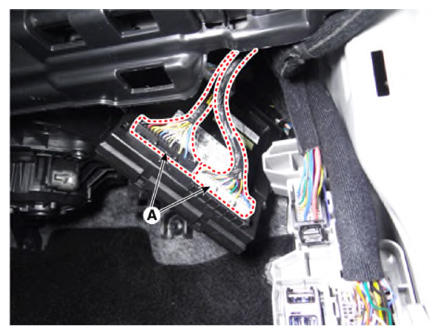

    G13836062Courtesy of KIA MOTORS AMERICA, INC.

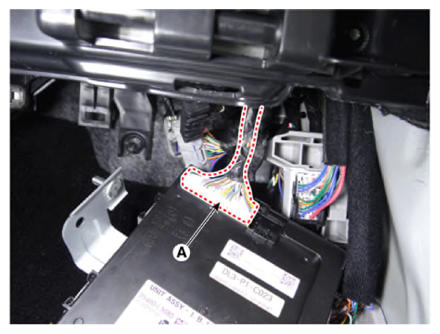

    G13836063Courtesy of KIA MOTORS AMERICA, INC.
