Repair Procedures: Replacement: Bellows

  1. Remove the tie rod end.

    (Refer to " TIE ROD END  ")

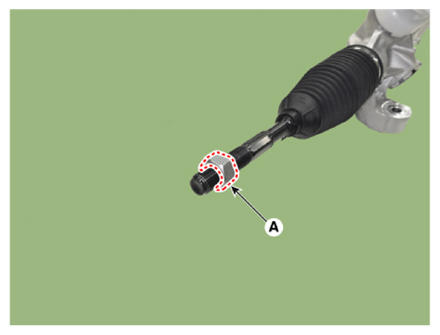

  2. Remove the tie rod end lock nut (A).
    G13835049Courtesy of KIA MOTORS AMERICA, INC.

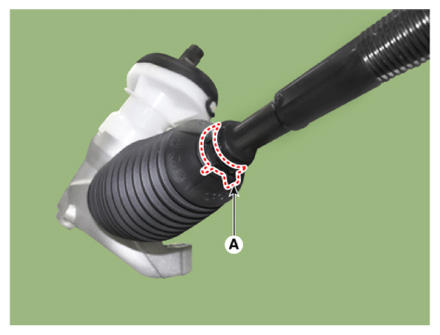

  3. Remove the bellows clamp (A).
    G13835050Courtesy of KIA MOTORS AMERICA, INC.

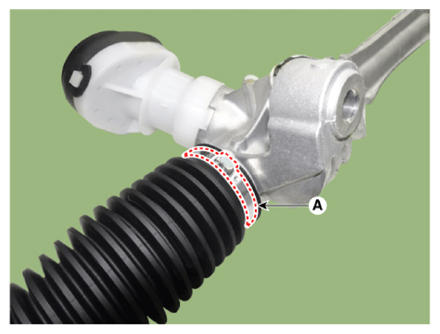

  4. Remove the bellows band (A).
    G13835051Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be sure to replace the band with a new one.
    • After installing together with the band, assemble the bellows.

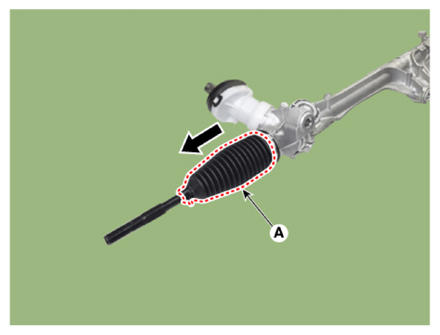

  5. Remove the bellows (A) to the arrow direction.
    G13835052Courtesy of KIA MOTORS AMERICA, INC.
  6. Replace the bellows with a new one.
  7. Check the alignment.

    (Refer to " ALIGNMENT  ")
