Repair Procedures: Installation

NOTE:

Install the component to the specified torque.

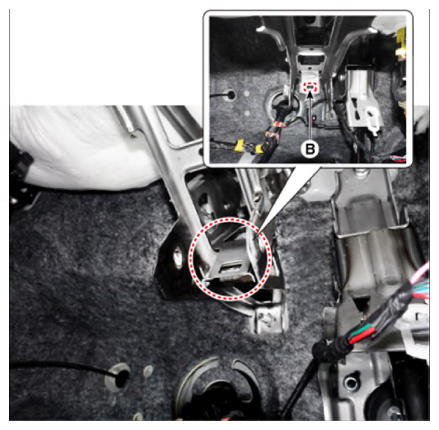

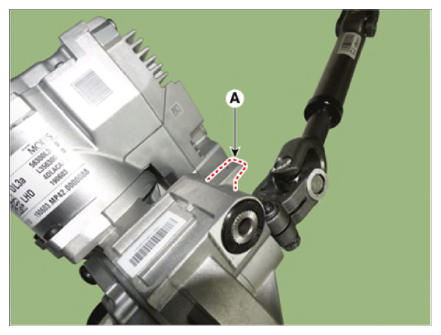

When assembling the MDPS assembly, insert the dowel pin (A) into the groove of the MDPS bracket (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Perform the "MDPS TUNING DATA SETTING " by KDS.
(Refer to " DIAGNOSIS WITH KDS ")
Perform the "SAS CALIBRATION " by KDS.
(Refer to " DIAGNOSIS WITH KDS ")
