Repair Procedures: Disassembly

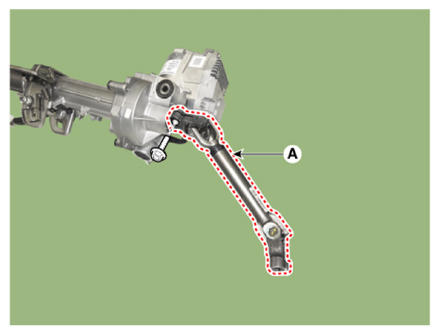

  1. Remove the steering universal joint assembly (A) after loosening the mounting bolt.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

    G13835012Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the bolt.
