Pressure Side Impact Sensor (P-SIS)

  1. Disconnect the negative battery terminal.
    CAUTION: After disconnecting the cables, wait at least 3 minutes.
  2. Remove the front door trim.

    (Refer to " Replacement  ")

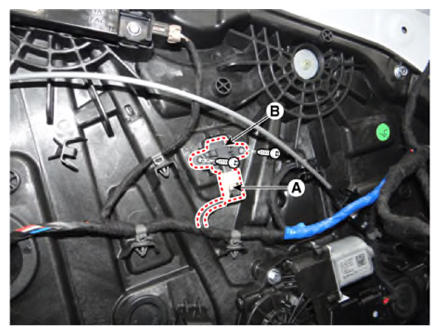

  3. Remove the pressure side impact sensor (B) by disconnecting the connector (A).

    Tightening torque:

    2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)

G13835100Courtesy of KIA MOTORS AMERICA, INC.
