Gravity Acceleration Side Impact Sensor (G-SIS)
- Disconnect the negative battery terminal.CAUTION: After disconnecting the cables, wait at least 3 minutes.
- Remove the center pillar trim.
(Refer to " Replacement ")

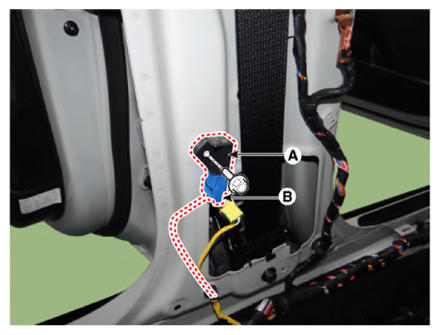

- Remove the gravity side impact sensor (A) by loosening the bolt and then disconnecting the connector (B).
Tightening torque:
6.9 -11.8 N.m (0.7 - 0.8 kgf.m, 5.0 - 5.8 lb.ft, 60.8 - 69.4 lb.in)
